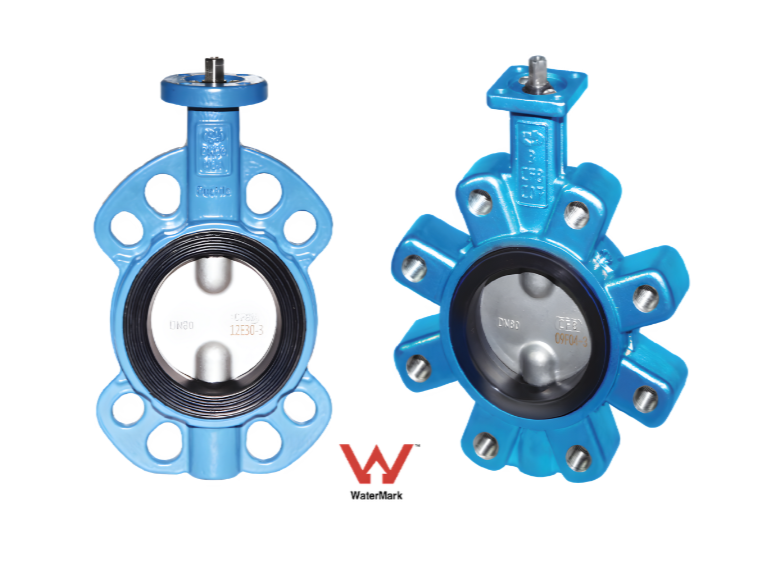

Type: Butterfly Valve

Size: 2" (50nb) - 80" (2000nb)

Rating: PN3.5, PN6, PN10, PN16, PN20

Body: ASTM A536 Gr.65-45-12(GGG40), ASTM, A216 WCB, ASTM A351 CF8, ASTM A351 CF8M

Disc Material Options: CF8, CF8M, Polished 316SS, Duplex 2205 or 1.4462, Super Duplex 2507, Hastelloy

Disc Pressure Options: Standard, Undercut (PN3.5),

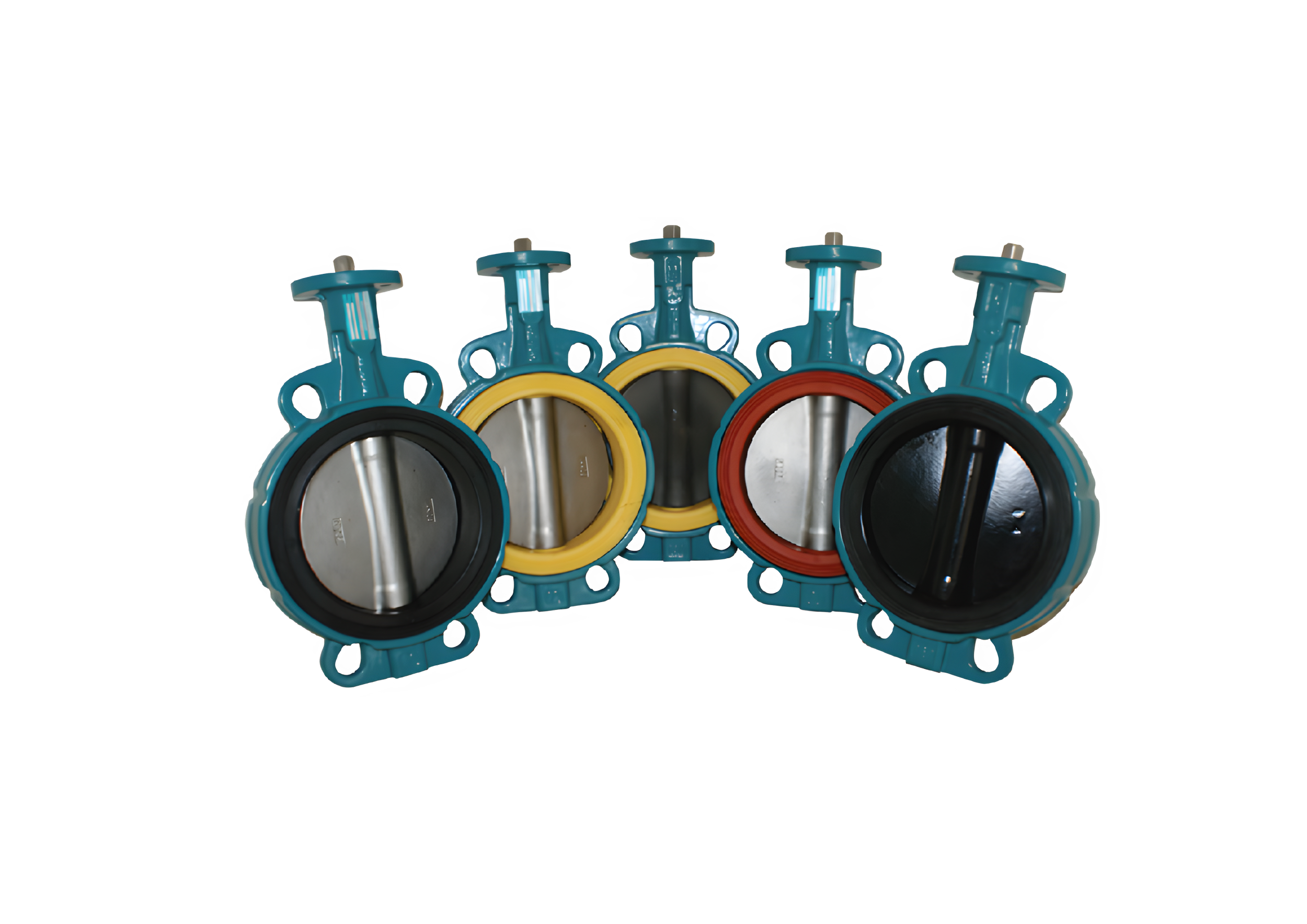

Seats: EPDM, NBR, VITON (FPM), WRAS EPDM*, PTFE coated EPDM, Silicon, Neoprene High Temp, Low Temp, Food Grade & Abrasive Resistant, EPDM and NBR, Chlorosulfonated Synthetic Rubber.

Flange Drilling Options: DN50-DN300: EN1092, PN10/16, ASME B16.5 Class150, JIS B2239 10K/16K, BS10, AS2129 Table D/E/F DN350-DN2000: EN1092, PN10/16,ASME B16.5 Class150, AS2129 Table D/E

Face to Face: EN558 Series 20, API 609 Table 1

Features: WaterMark 060167, AS4020 Accreditation

Actuator Mount: ISO 5211 Direct Mount

Testing: ISO 5208 Category 3, API 598 Table 5

Wafer, Lugged & Double Flanged

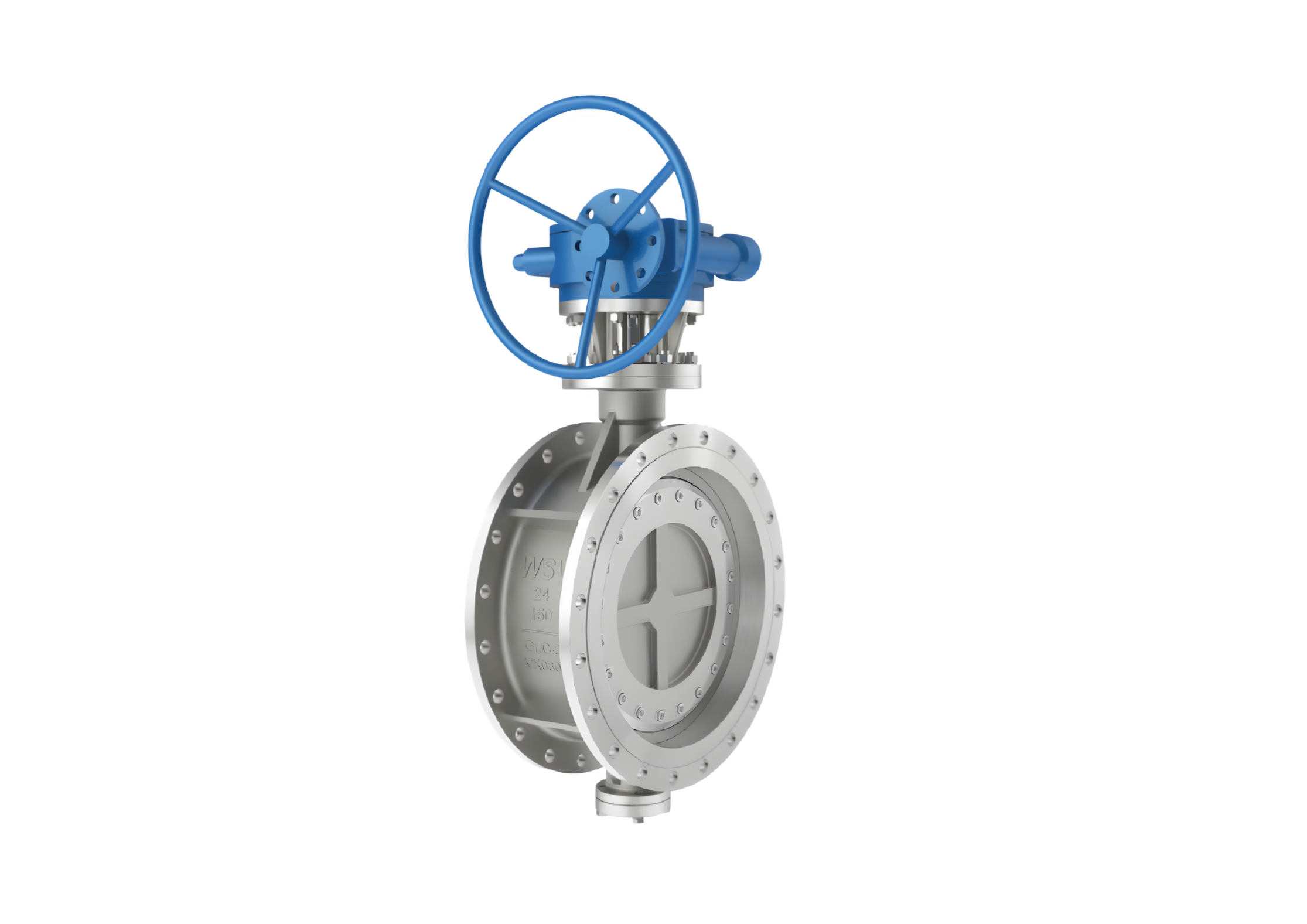

Type: Butterfly Valve

Size: 3" (80nb) - 24" (600nb)

Rating: ANSI 150, 300 & 600lb on request

Body: Hastelloy (C276), Duplex, Super Duplex, Titanium, Titanium Alloy, Nickel Alloys, Monel, Alu-Bronze, Stainless Alloys and Austenitic Stainless Steel.

Design: API609, ASME B16.5, ASME B16.47 Series A, ASME B16.34

Seats: Metal with Graphite, Metal with PTFE & other material available on request

Flange Drilling Options: ANSI 150lb, 300lb, 600lb (On Request), Wafer, Lugged and Double Flanged

Face to Face: API 609

Features: Anti-static, Blowout Proof Stem, API 607 Firesafe Available, Inline Adjustable Packing, Uni or Bi-Directional for soft seat. Zero Leakage

Actuation Options: Lockable Lever, Gearbox Operated, Lockable Gearbox Operated, Pneumatic Actuated (SR or DA), Electric Actuated, Position Control.

Actuator Mount: ISO 5211

Testing: API 598

Wafer, Lugged

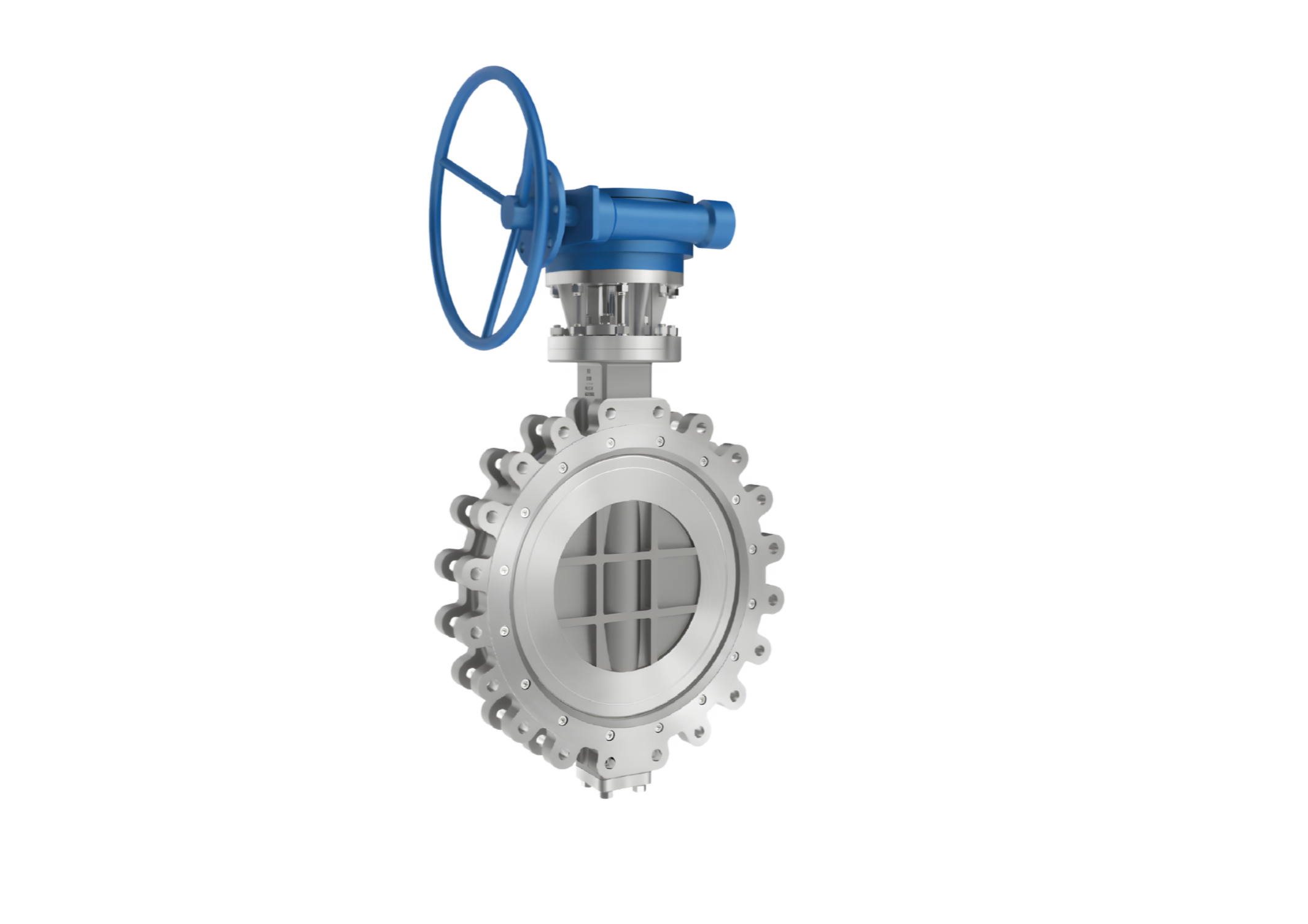

Type: Butterfly Valve

Size: 2" (50nb) - 48" (1200nb)

Rating: ANSI 150, 300 & 600lb on request

Body: Hastelloy (C276), Duplex, Super Duplex, Titanium, Titanium Alloy, Nickel Alloys, Monel, Alu-Bronze, Stainless

Alloys and Austenitic Stainless Steel.

Design: API609, ASME B16.5, ASME B16.47 Series A, ASME B16.34

Seats: PTFE, RPTFE (15% Glass), RPTFE (25% Carbon), Viton & other materials available on request.

Flange Drilling Options: ANSI 150lb, 300lb, Wafer & Lugged

Face to Face: API 609

Features: Anti-static, Blowout Proof Stem, API 607 Firesafe Available, In line Adjustable Packing, Uni or Bi-Directional for soft seat, Zero Leakage

Actuation Options: Lockable Lever, Gearbox Operated, Lockable Gearbox Operated, Pneumatic Actuated (SR or DA), Electric Actuated, Position Control.

Actuator Mount: ISO 5211

Testing: API 598

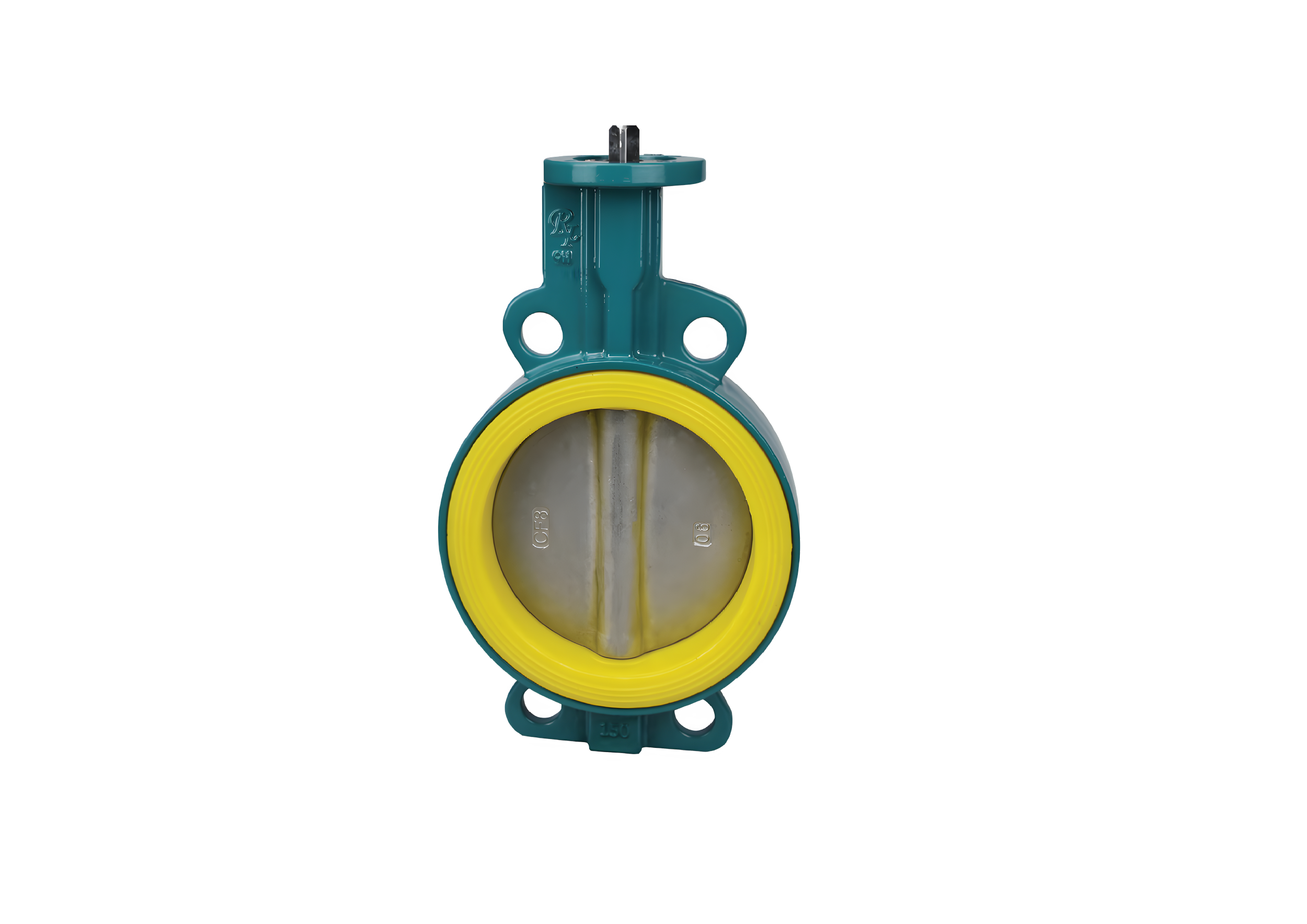

Kempe’s WearStar butterfly valve is engineered for superior performance in abrasive and corrosive environments. It features a polyurethane seat and a tungsten carbide-coated disc, providing exceptional durability and wear resistance.

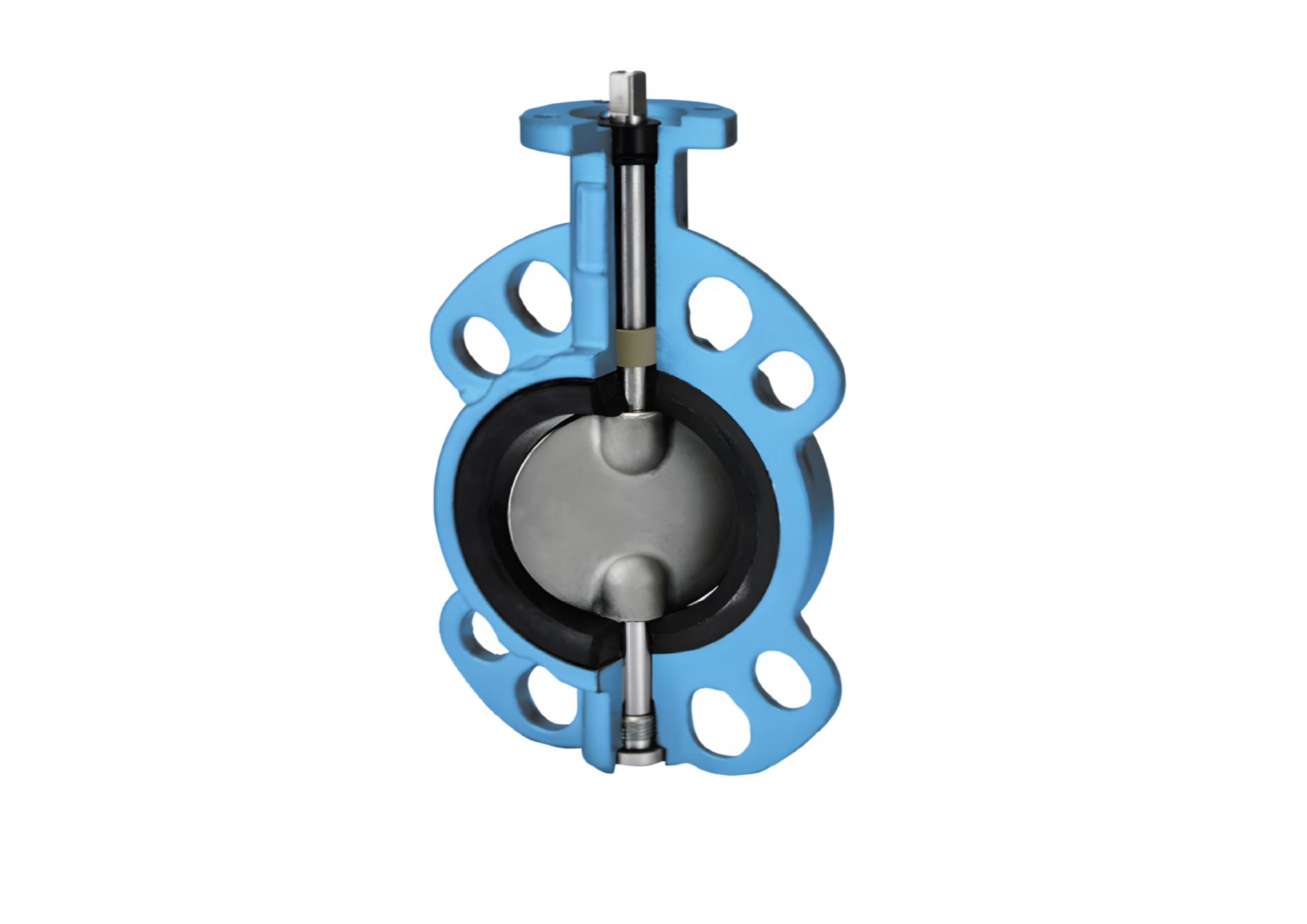

Anti blow-out proof stem design, suitable for higher pressure and vacuum applications due to the cartridge seat design. High flow capacity and sufficient strength due to the streamlined disc design, raise seating face eliminates the need for flange gaskets. ISO 5211 top flange suitable for direct mount actuation. Ingress seal prevents contaminants from entering the shaft area.

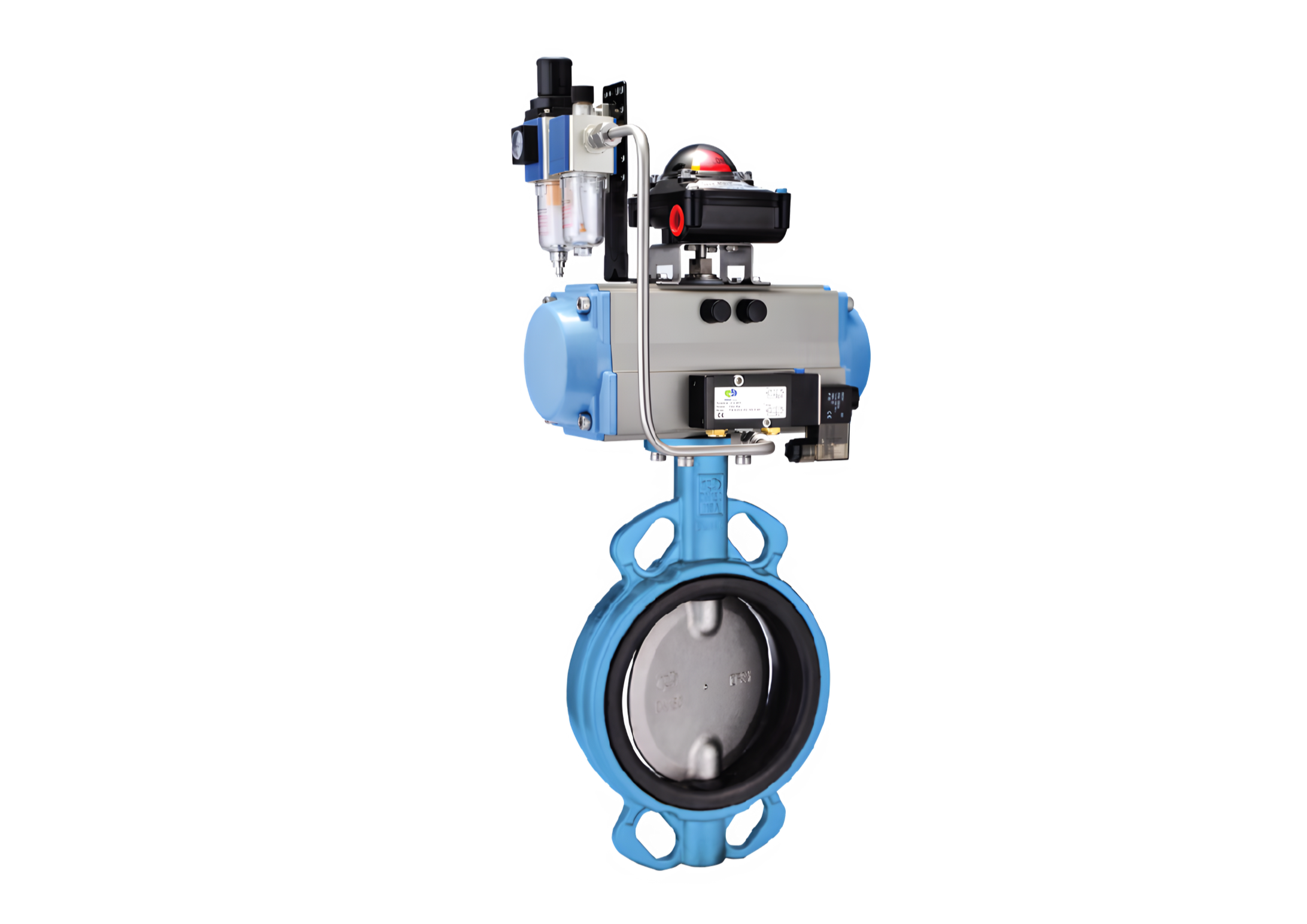

We supply multiple actuation options

to suit your application.
