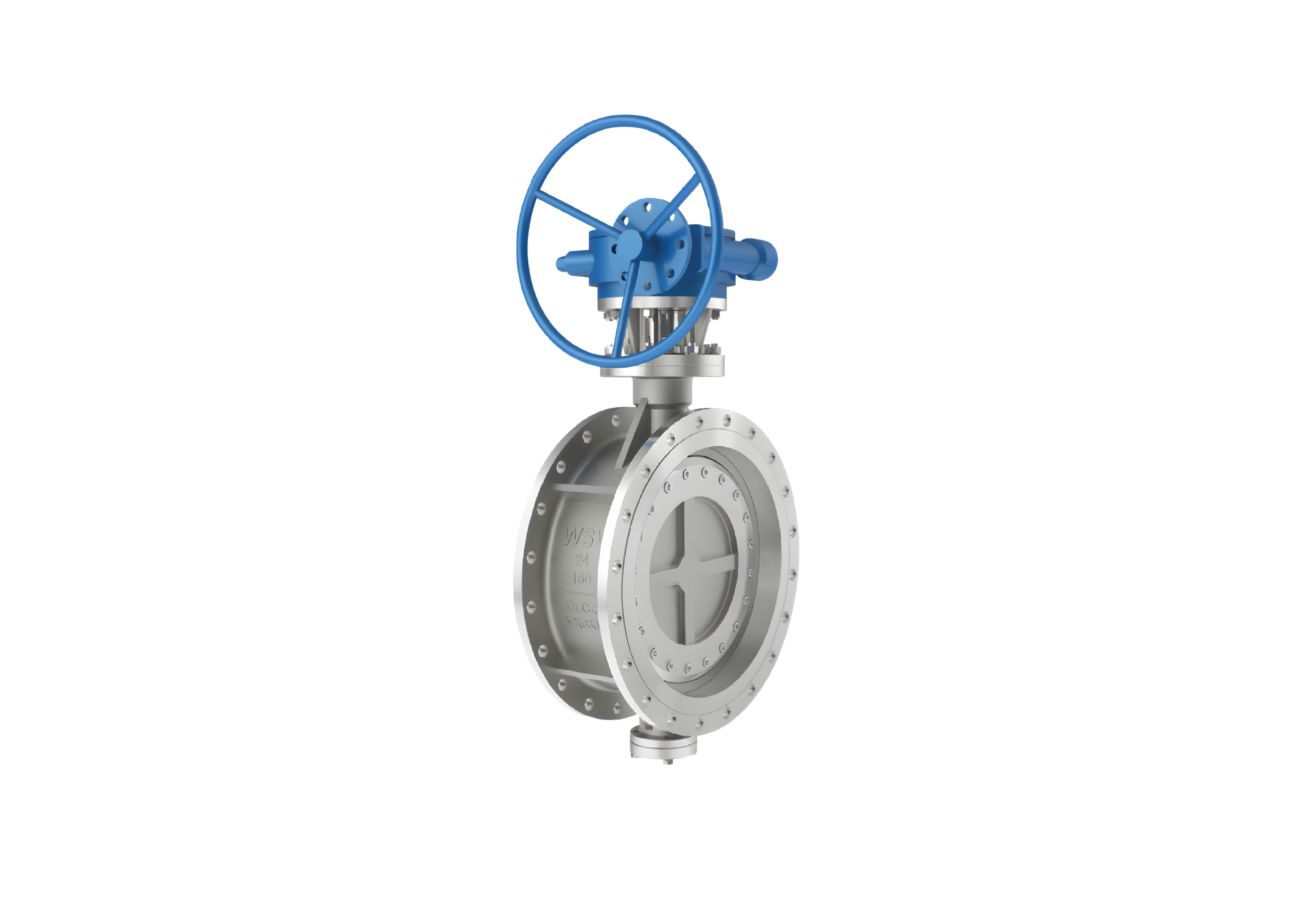

Triple Eccentric Butterfly Valves

Wafer, Lugged & Double Flanged

Type: Butterfly Valves

Size: 3" (80nb) - 24" (600nb)

Rating: ANSI 150, 300 & 600lb on request

Body: Hastelloy (C276), Duplex, Super Duplex, Titanium, Titanium Alloy, Nickel Alloys, Monel, Alu-Bronze, Stainless Alloys and Austenitic Stainless Steel.

Design: API609, ASME B16.5, ASME B16.47 Series A, ASME B16.34

Seats: Metal with Graphite, Metal with PTFE & other material available on request

Flange Drilling Options: ANSI 150lb, 300lb, 600lb (On Request), Wafer, Lugged and Double Flanged

Face to Face: API 609

Features: Anti-static, Blowout Proof Stem, API 607 Firesafe Available, Inline Adjustable Packing, Uni or Bi-Directional for soft seat. Zero Leakage

Actuation Options: Lockable Lever, Gearbox Operated, Lockable Gearbox Operated, Pneumatic Actuated (SR or DA), Electric Actuated, Position Control.

Actuator Mount: ISO 5211

Testing: API 598
