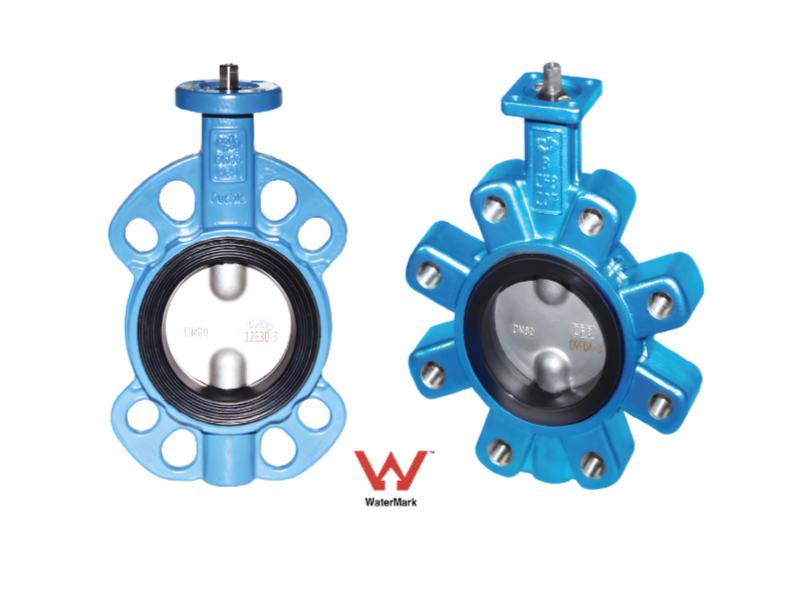

Wafer & Lugged Butterfly Valves

Written By Marc Flores

Type: Butterfly Valves

Size: 2" (50nb) - 80" (2000nb)

Rating: PN3.5, PN6, PN10, PN16, PN20

Body: ASTM A536 Gr.65-45-12(GGG40), ASTM, A216 WCB, ASTM A351 CF8, ASTM A351 CF8M

Disc Material Options: CF8, CF8M, Polished 316SS, Duplex 2205 or 1.4462, Super Duplex 2507, Hastelloy

Disc Pressure Options: Standard, Undercut (PN3.5),

Seats: EPDM, NBR, VITON (FPM), WRAS EPDM*, PTFE coated EPDM, Silicon, Neoprene High Temp, Low Temp, Food Grade & Abrasive Resistant, EPDM and NBR, Chlorosulfonated Synthetic Rubber.

Flange Drilling Options: DN50-DN300: EN1092, PN10/16, ASME B16.5 Class150, JIS B2239 10K/16K, BS10, AS2129 Table D/E/F DN350-DN2000: EN1092, PN10/16,ASME B16.5 Class150, AS2129 Table D/E

Face to Face: EN558 Series 20, API 609 Table 1

Features: WaterMark 060167, AS4020 Accreditation

Actuator Mount: ISO 5211 Direct Mount

Testing: ISO 5208 Category 3, API 598 Table 5
