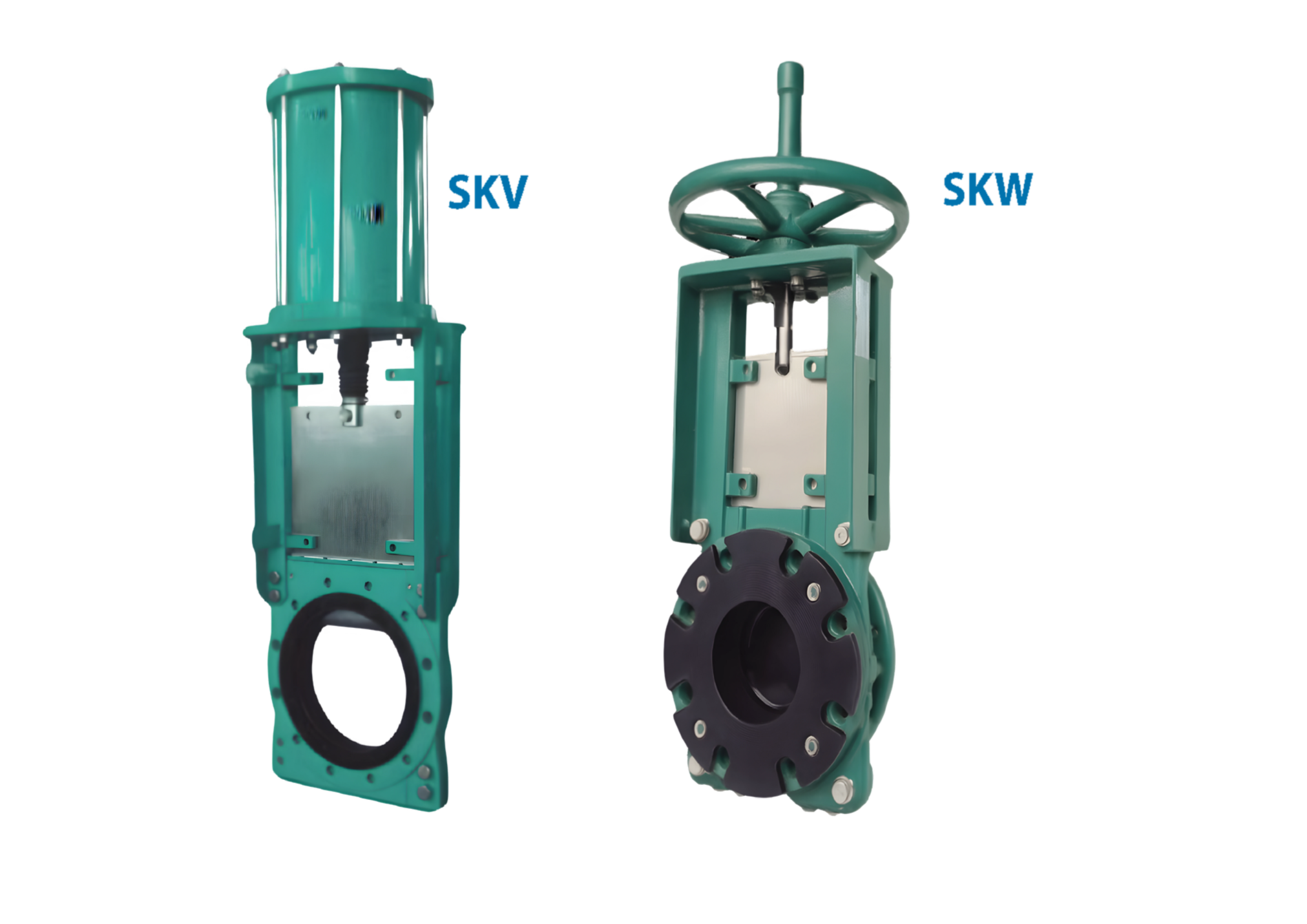

Size Range: 2” (50nb) – 24” (600nb)

Pressure Rating: 150 PSI CWP (2”-16”) 90 PSI CWP (18”-24”)

Body Yoke: Fusion Bonded Epoxy Coated

Body Materials: Ductile Iron, S/Steel, Duplex

Sleeves: Natural Rubber: 70°c max,

EPDM: 110°C max, Viton: 200°c max

Gate: 316 Stainless Steel, Duplex, *Other materials available on request

Flange Drilling: AS2129 Table E, EN1092 PN10, ANSI B16.5 Class 150

Actuator Options: Hand Wheel, Bevel Gear, Pneumatic, Hydraulic, Electric.

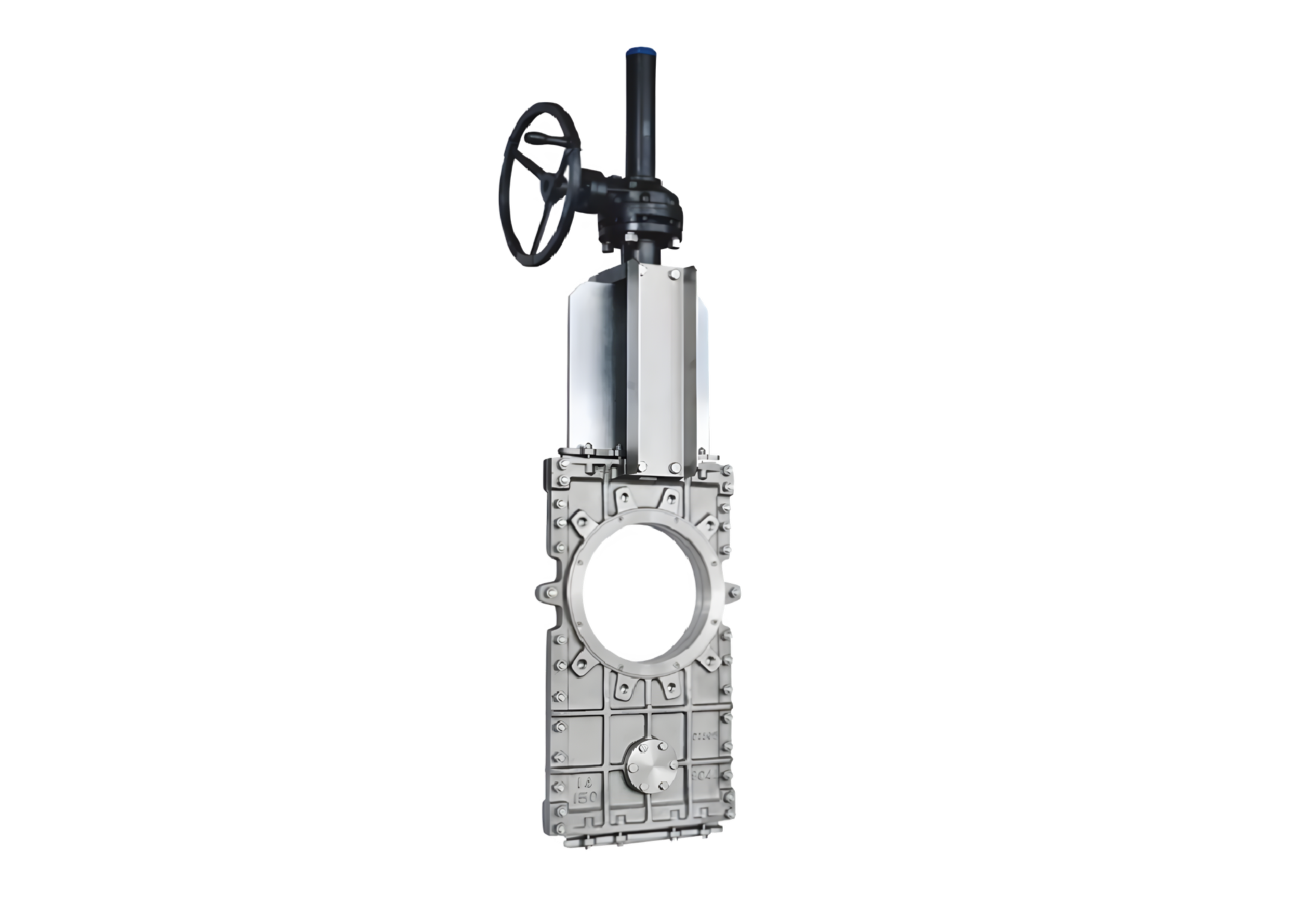

Ported Knife Gate Valves handle large

particles and high-density slurries.

Their design allows smooth passage

of abrasive materials, reducing

obstructions and ensuring consistent flow.

Ideal for mining, wastewater, pulp & paper,

and heavy-duty applications.

2" (50nb) - 24" (600nb), Max 250°c ,

Metal Seat, AS2129 Table D/E,

ANSI 150, 1600kPa. Face to Face and

design to manufacturers standard.

Various body materials and

actuation options available.

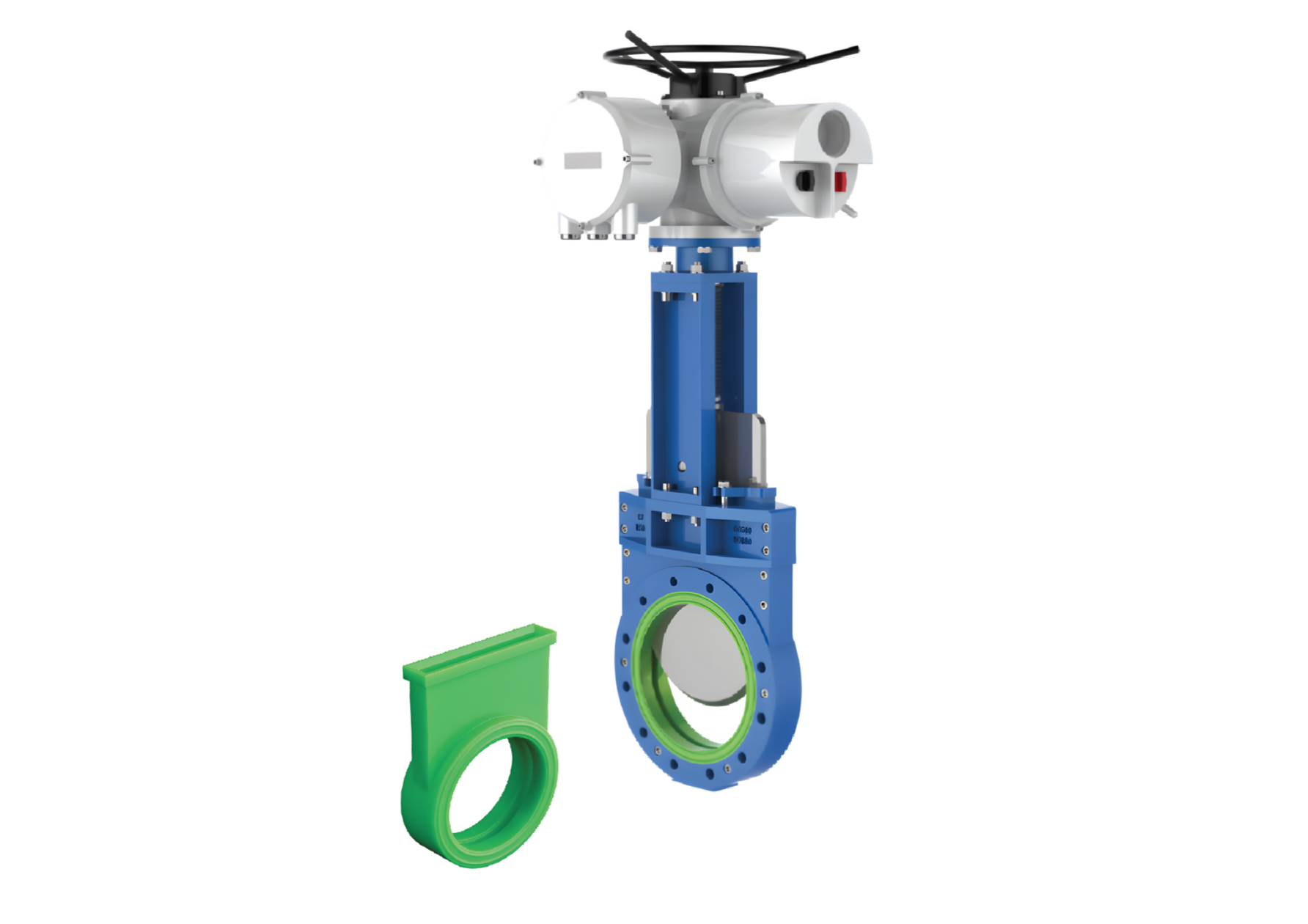

Polyurethane lined Knife Gate valves offer excellent abrasion resistance, ideal for handling slurry and abrasive materials. The durable polyurethane lining protects the valve body from wear, ensuring longevity.

2" (50nb) - 24" (600nb), Max 180°c ,

AS2129 Table D/E, ANSI 150, 1600kPa,

Design Standard MSS-SP81.

Various body materials, seats, ports and actuation options available.

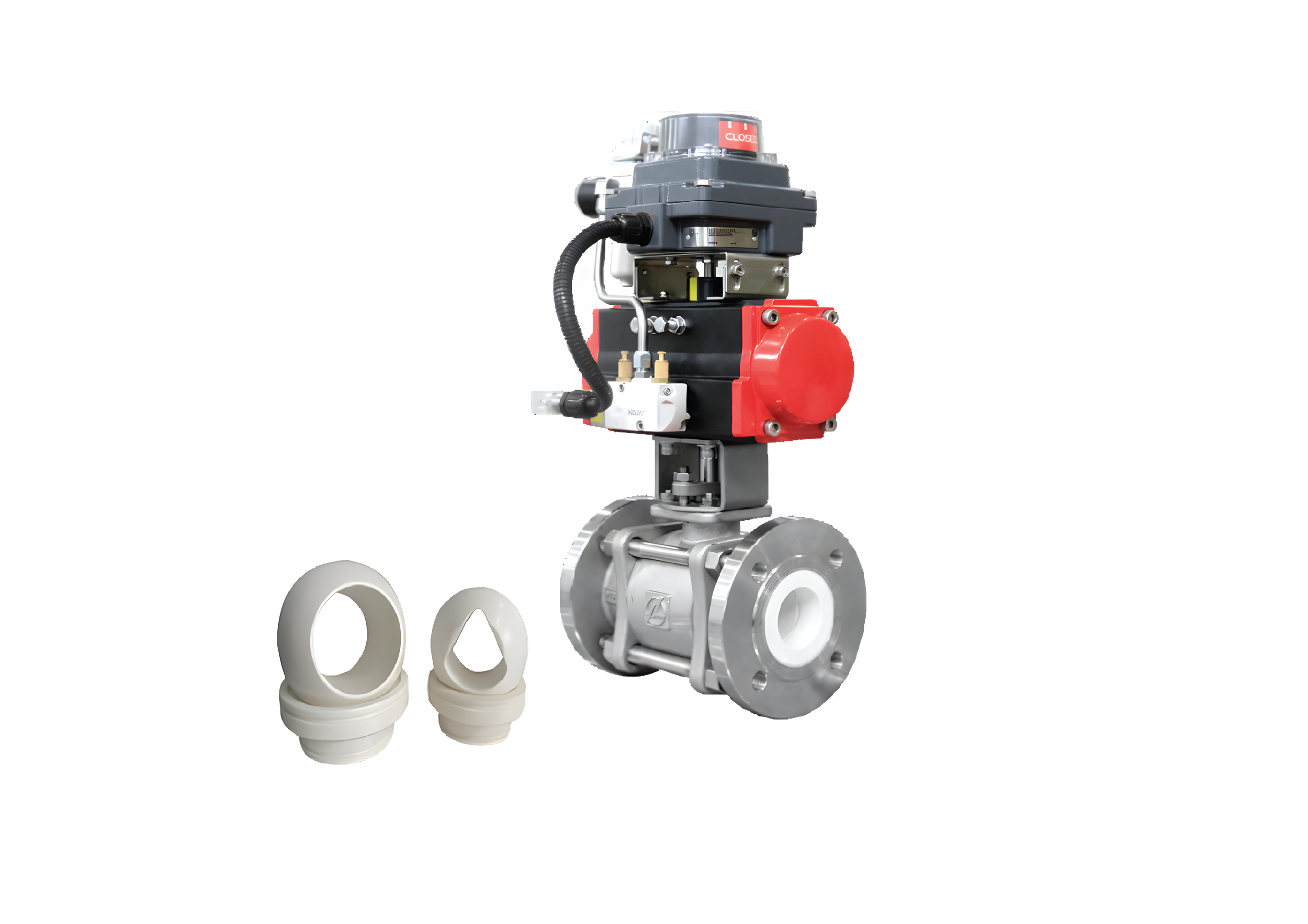

Ceramic lined ball valves are designed for highly abrasive and corrosive applications, offering exceptional durability and control. Featuring solid ceramic internal parts, they provide superior resistance to wear, ideal for demanding industrial environments.

2" (50nb) - 12" (300nb), -29°c to 200°c,

ANSI 150 & 300, API 608 and API6D,

ASME B16.10, Carbon and

Stainless Steel, API 598.

Sleeved plug valves offer a maintenance free, non-lubricated solution, ideal for applications where lubricant contamination must be avoided. They provide reliable performance in chemical and abrasive environments without regular lubrication.

1/2" (15nb) - 24" (600nb), -29°c to 180°c,

ANSI 150 - 900LB, API 599 and ASME B16.34,

ASME B16.10, API 598

Various materials and coatings available.

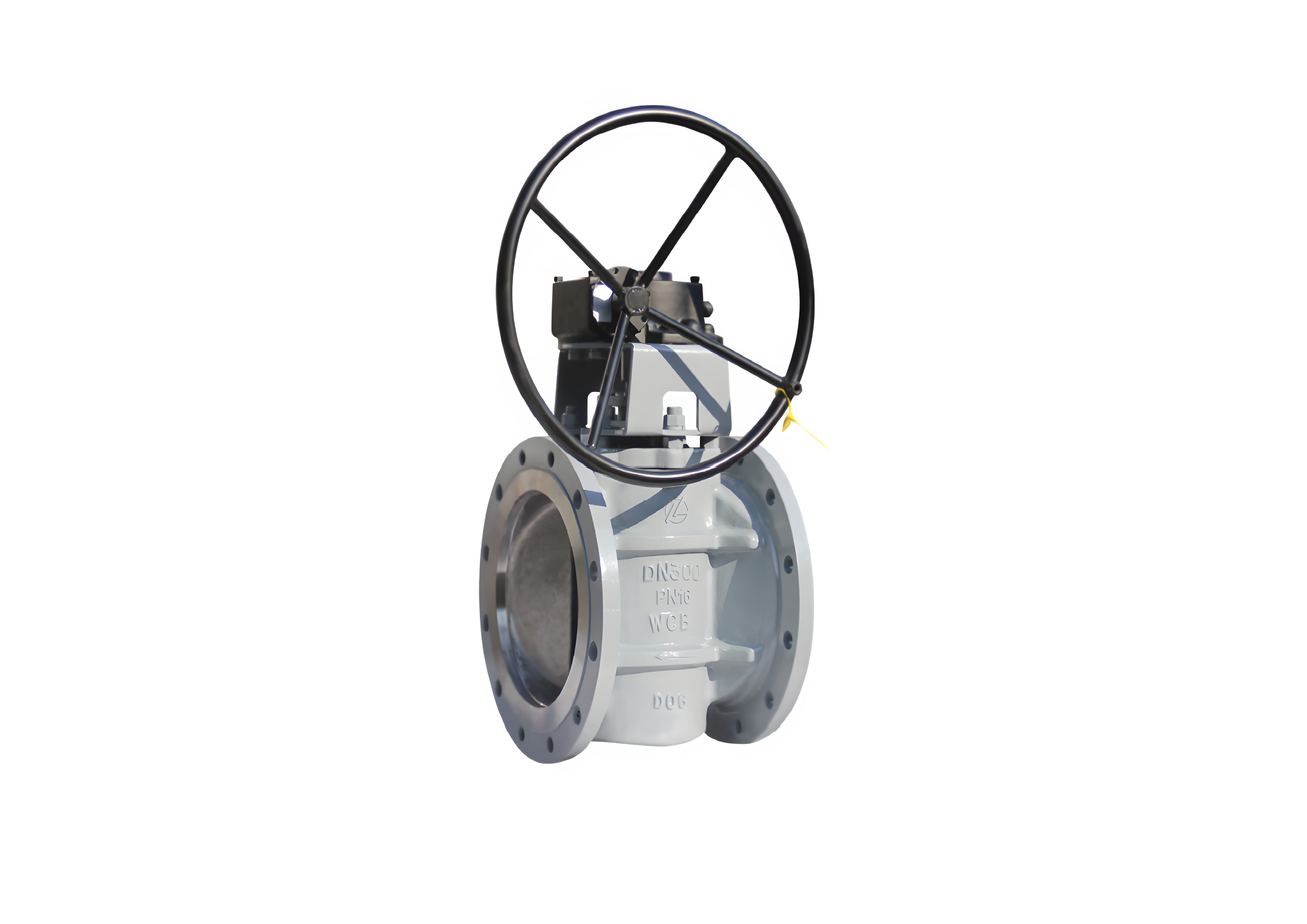

Eccentric plug valves handle a diverse range of media, including chemicals, liquids, slurries, gases, and sludge. Known for strong performance, they offer excellent versatility for both isolation/shutoff and throttling/control.

1/2" (15nb) - 24" (600nb),-29°c to

180°c , ANSI 150 - 900LB, API 599

and ASME B16.34, ASME B16.10,

Various materials and

coatings available, API 598.

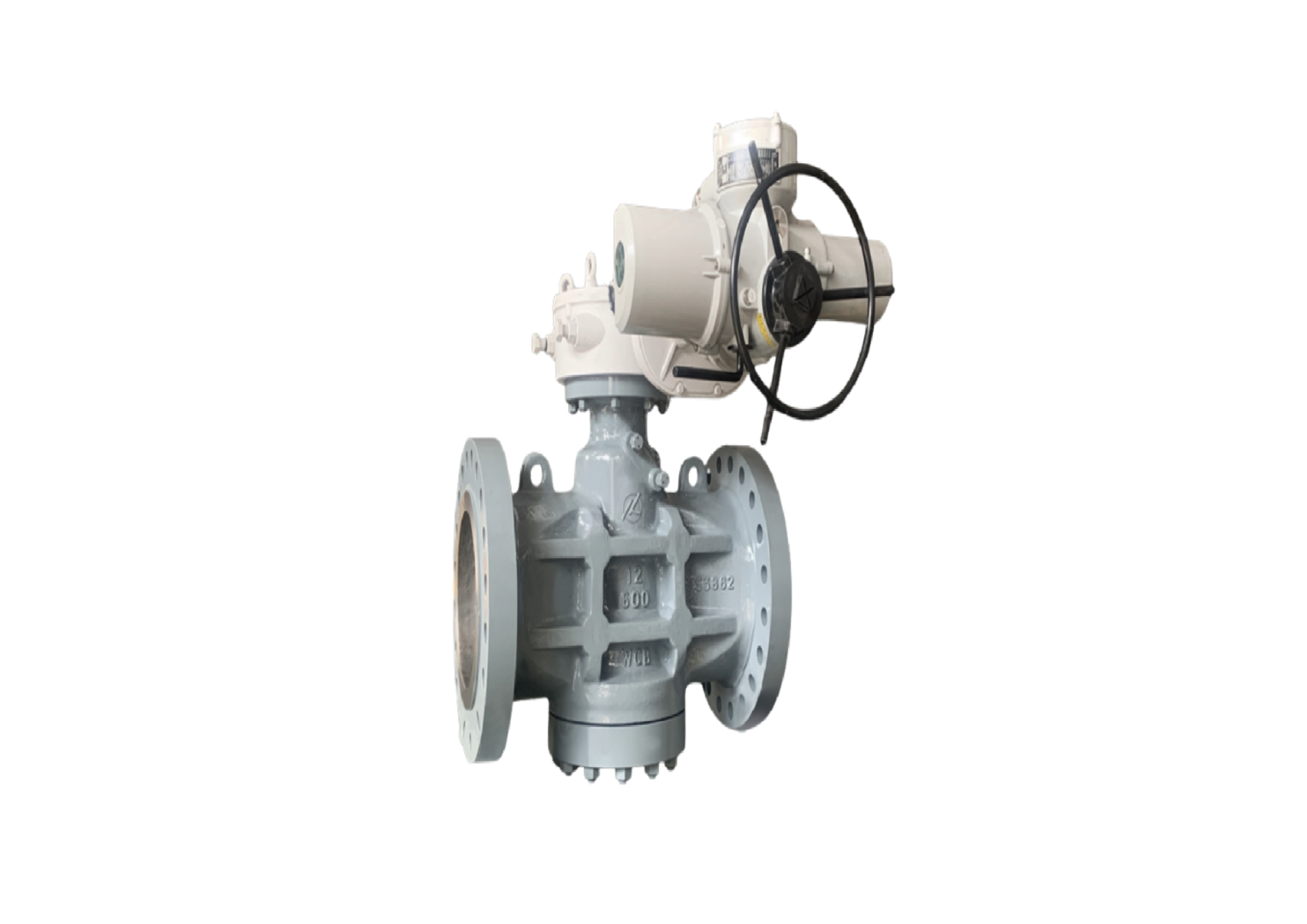

Lubricated plug valves handle abrasive materials with added lubrication, reducing friction and wear. Suitable for applications requiring frequent operation.

2" (50nb) - 24" (600nb), -29°c to 180°c,

ANSI 150 - 600LB, API 599 and

ASME B16.34, ASME B16.10,

Various materials and coatings

available, API 598.

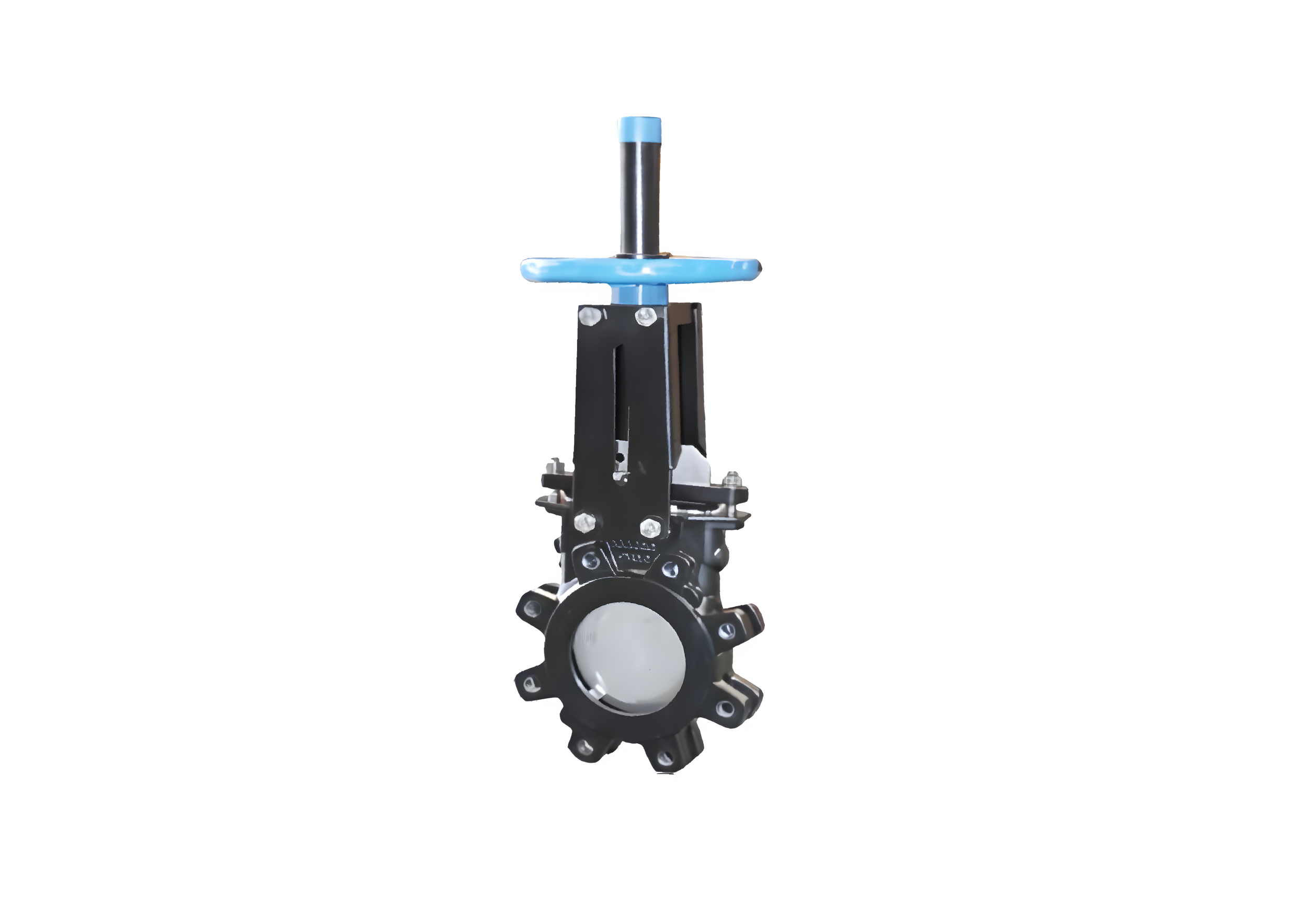

SKU (Uni) and SKB (Bi-Directional) Knife gate valves

Knife gate valves are available in uni-directional and bi-directional options, designed for slurry, chemical, and high-pressure applications.

Our valves ensure robust performance and reliability in demanding environments.

2" (50nb) - 24" (600nb), Max 180°c , Metal and Resilient Seat, AS2129 Table D/E, ANSI 150, 1600kPa, Design Standard MSS-SP81.

Various body materials, seats, ports and actuation options available.

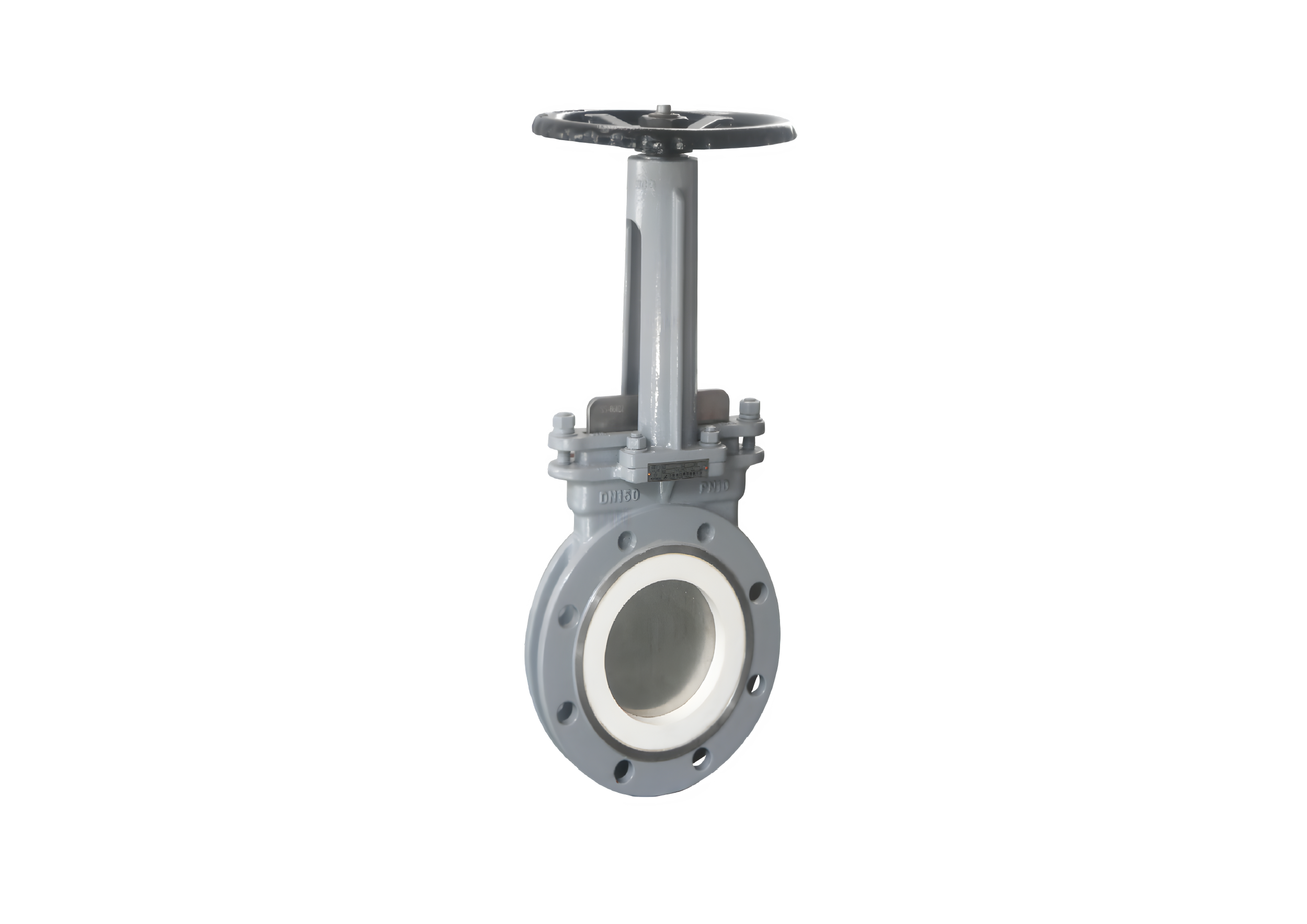

Ceramic lined Knife Gate valves offer superior abrasion resistance, ideal for extremely abrasive applications. The ceramic material withstands high wear, significantly extending the valve's service life.

2" (50nb) - 24" (600nb), Max 250°c ,

Metal Seat, AS2129 Table D/E,

ANSI 150, 1600kPa. Face to Face

and design to Manufacturers Standard.

Various body materials and

actuation options available.

We supply multiple actuation options to suit your application. Find your nearest Kempe location for advice and availability.
