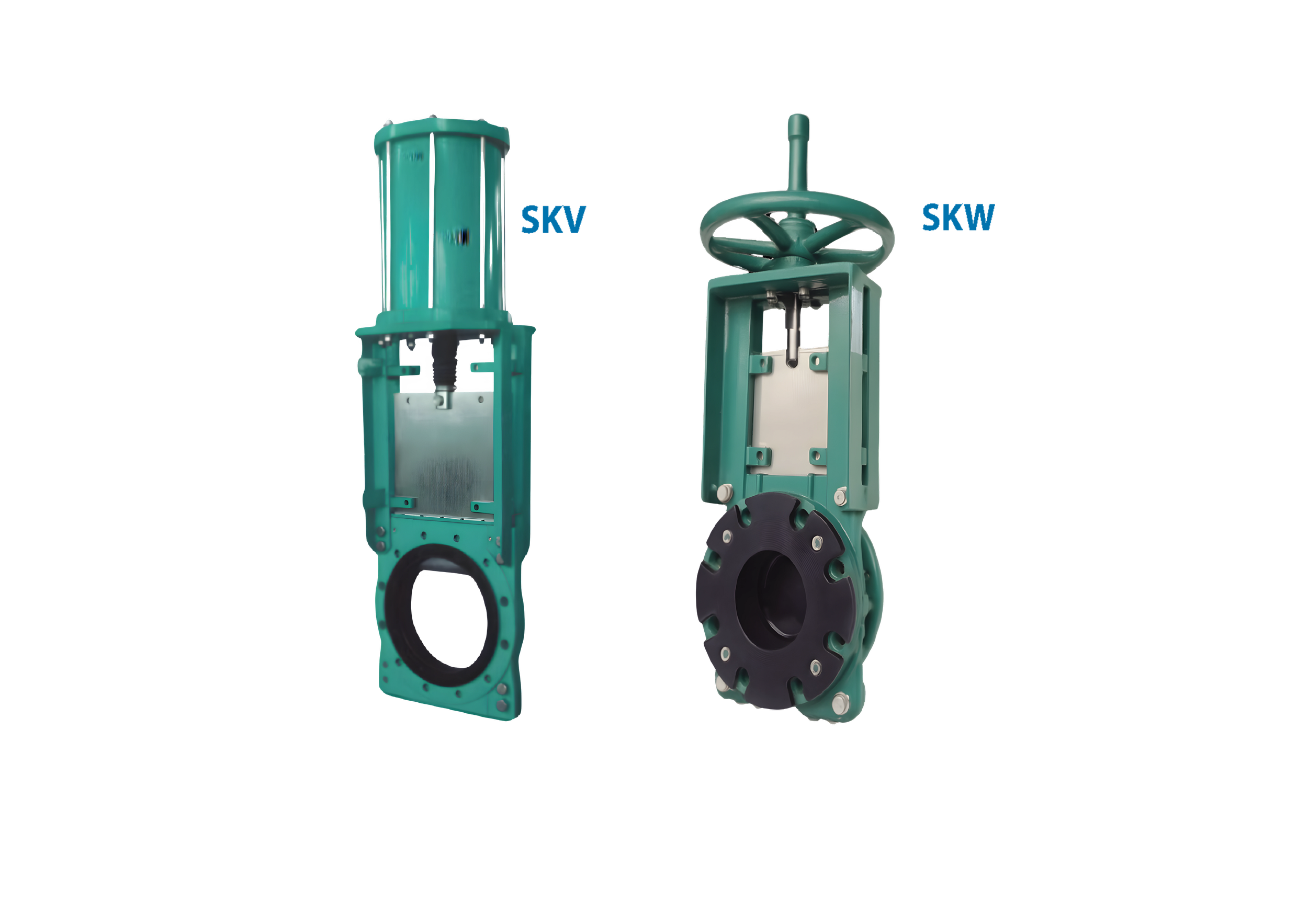

Knife gate Valves SKV and SKW Series

Size Range: 2” (50nb) – 24” (600nb)

Pressure Rating: 150 PSI CWP (2”-16”) 90 PSI CWP (18”-24”)

Body Yoke: Fusion Bonded Epoxy Coated

Body Materials: Ductile Iron, S/Steel, Duplex

Sleeves: Natural Rubber: 70°c max,

EPDM: 110°C max, Viton: 200°c max

Gate: 316 Stainless Steel, Duplex, *Other materials available on request

Flange Drilling: AS2129 Table E, EN1092 PN10, ANSI B16.5 Class 150

Actuator Options: Hand Wheel, Bevel Gear, Pneumatic, Hydraulic, Electric.
