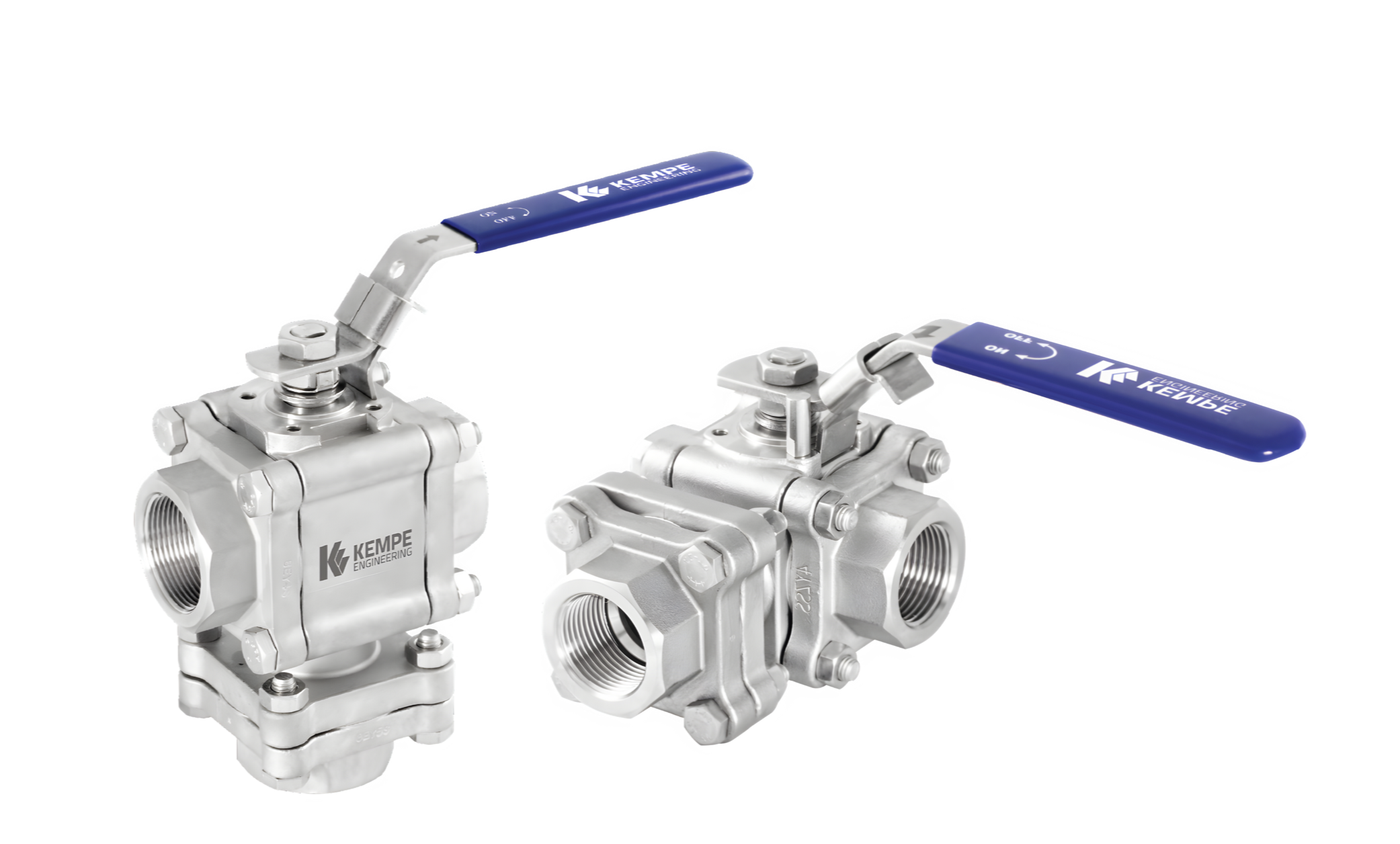

K88 - Diverter Valves
MultiPort Diverter Valve
Size Range: 1/4" to 2" (DN8 to DN50)
Bore: Full or Reduced Bore
Pressure Rating: WOG 1500, 2000
Top Works: Direct Mount
End Connections: NPT, BSP, Socketweld,
Buttweld, Flanged, Tube Buttweld
Materials: CF8M, CF3M, CF8, CF3, WCB, CN7M, CD3MN, CE3MN, CW12MW, 904L, LCC, Titanium Alloy (Gr. C-2)
Seat Material: PTFE, RTFE, CTFE, TFM1600, MG1241, STFE, PEEK, Delrin, UHMWPE, PCTFE
Features: SIL 3, ATEX
MultiPort Diverter Valve
Size Range: 1/4" to 2" (DN8 to DN50)
Bore: Full or Reduced Bore
Pressure Rating: WOG 1500, 2000
Top Works: Direct Mount
End Connections: NPT, BSP, Socketweld,
Buttweld, Flanged, Tube Buttweld
Materials: CF8M, CF3M, CF8, CF3, WCB, CN7M, CD3MN, CE3MN, CW12MW, 904L, LCC, Titanium Alloy (Gr. C-2)
Seat Material: PTFE, RTFE, CTFE, TFM1600, MG1241, STFE, PEEK, Delrin, UHMWPE, PCTFE
Features: SIL 3, ATEX

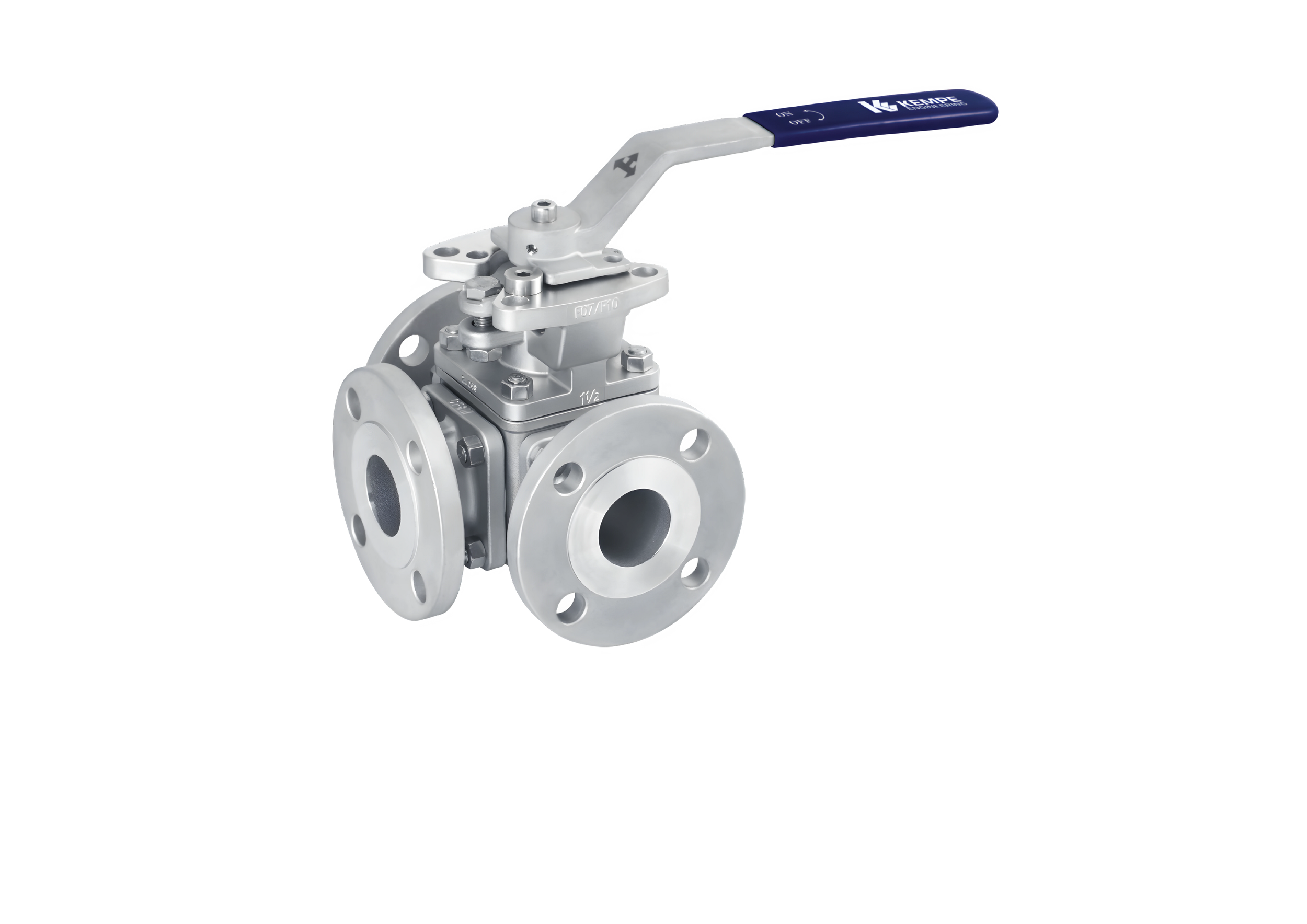

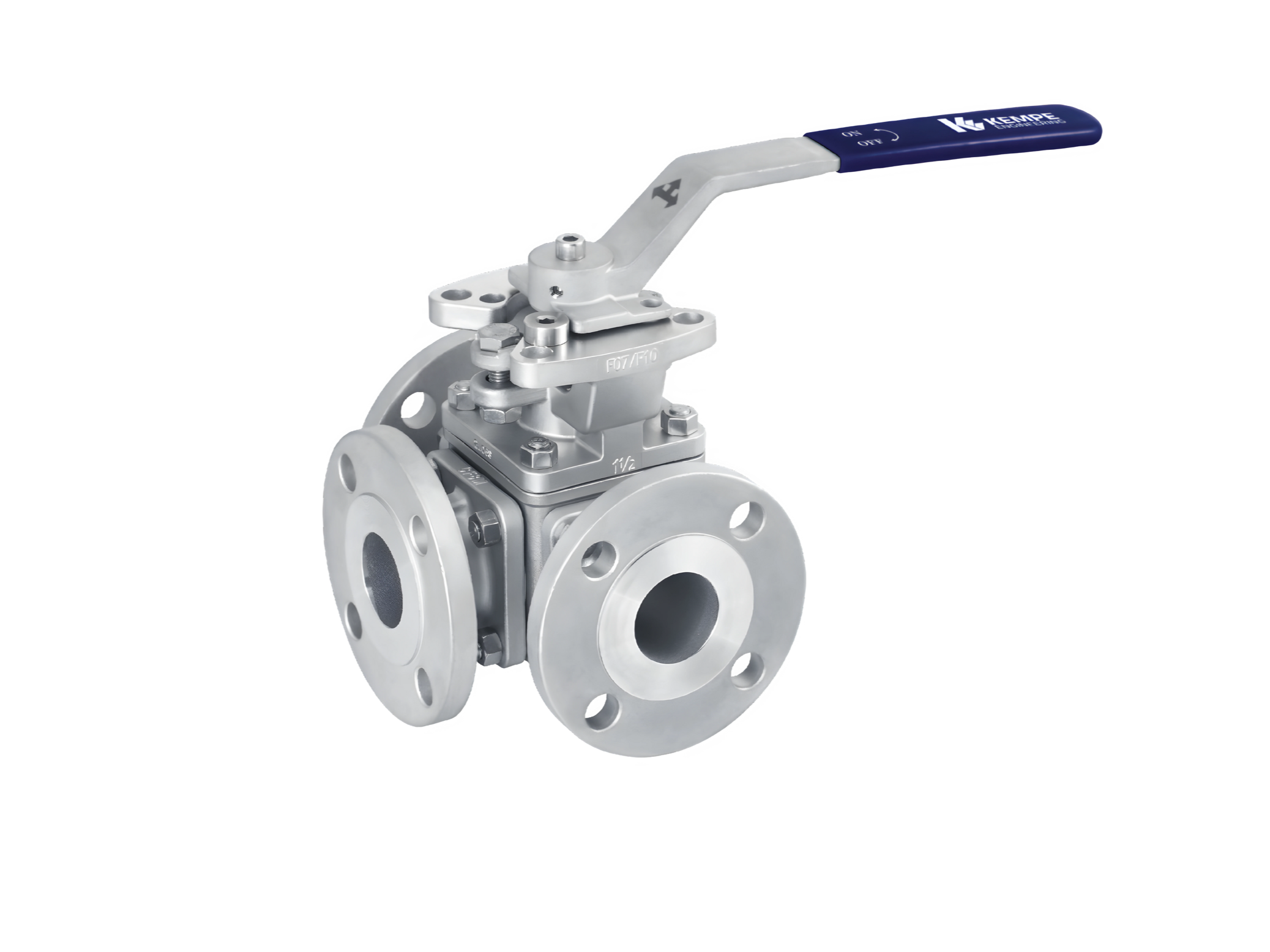

K30 - MultiPort Flanged Ball Valves
Size Range: 1-1/2" to 6" (DN40 to DN150)
Bore: Full Bore, WOG 1500, 2000
Pressure Rating: ANSI Class 150lb
Top Works: ISO 5211
End Connections: ANSI Class 150lb
Materials: CF8M, CF3M, CF8, CF3, WCB
Seat Material: PTFE, RTFE, CTFE, TFM1600, MG1241, STFE
Features: Anti-static Option, CE, SIL 3, ATEX
Size Range: 1-1/2" to 6" (DN40 to DN150)
Bore: Full Bore, WOG 1500, 2000
Pressure Rating: ANSI Class 150lb
Top Works: ISO 5211
End Connections: ANSI Class 150lb
Materials: CF8M, CF3M, CF8, CF3, WCB
Seat Material: PTFE, RTFE, CTFE, TFM1600, MG1241, STFE
Features: Anti-static Option, CE, SIL 3, ATEX

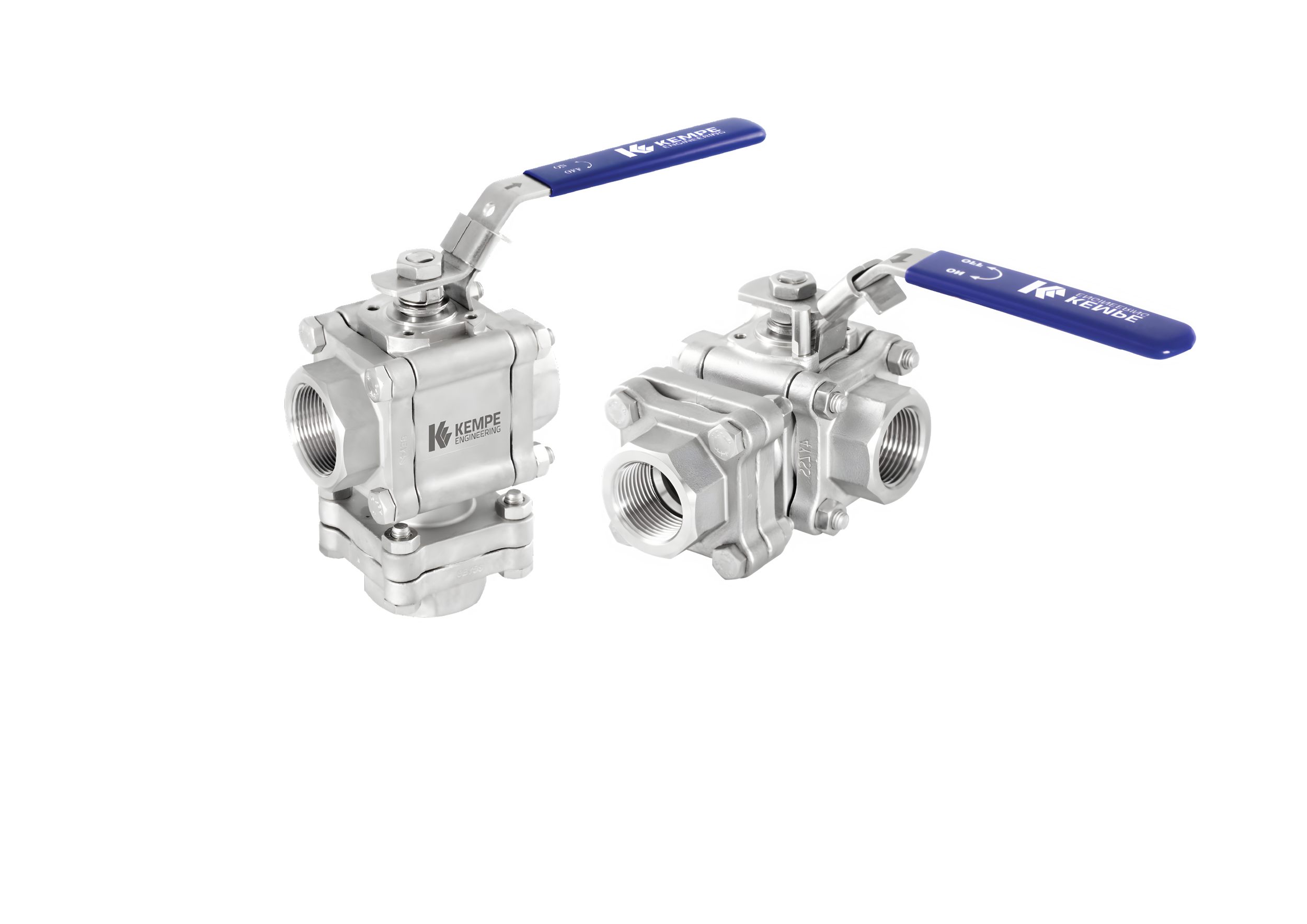

K33 - MultiPort 3-4-5 Way Ball Valves
Size Range: 1/4" to 4" (DN8 to DN100)
Bore: Full Bore
Pressure Rating: WOG, 300, 600, 800, 1000 (Size Dependant)
Top Works: Direct Mount
End Connections: BSP, NPT, Socket Weld, Buttweld, ANSI Class 150lb, 300lb Raised Face, Sanitary Ends
Materials: CF8M, CF3M, CF8, CF3, WCB
Seat Material: PTFE, RTFE, CTFE, TFM1600, MG1241, STFE
Features: CE, SIL 3, ATEX, NACE MR-0175 Option
Size Range: 1/4" to 4" (DN8 to DN100)
Bore: Full Bore
Pressure Rating: WOG, 300, 600, 800, 1000 (Size Dependant)
Top Works: Direct Mount
End Connections: BSP, NPT, Socket Weld, Buttweld, ANSI Class 150lb, 300lb Raised Face, Sanitary Ends
Materials: CF8M, CF3M, CF8, CF3, WCB
Seat Material: PTFE, RTFE, CTFE, TFM1600, MG1241, STFE
Features: CE, SIL 3, ATEX, NACE MR-0175 Option
K39M - MultiPort 3 Way Ball Valves
Size Range: 1/4" to 2" (DN8 to DN50)
Bore: Full or Reduced Bore (L or T-Port)
Pressure Rating: WOG 1000 (FB 1/4" to 2", RB 1/2" to 2")
Top Works: Direct Mount
End Connections: BSP, NPT
Materials: CF8M, CF3M, CF8, CF3, WCB
Seat Material: PTFE, RTFE, CTFE, TFM1600, MG1241, STFE
Features: CE, SIL 3, ATEX
Size Range: 1/4" to 2" (DN8 to DN50)
Bore: Full or Reduced Bore (L or T-Port)
Pressure Rating: WOG 1000 (FB 1/4" to 2", RB 1/2" to 2")
Top Works: Direct Mount
End Connections: BSP, NPT
Materials: CF8M, CF3M, CF8, CF3, WCB
Seat Material: PTFE, RTFE, CTFE, TFM1600, MG1241, STFE
Features: CE, SIL 3, ATEX
Double Block and Bleed Ball Valves
Double Block and Bleed
Size Range: 1/4" to 2-1/2" (DN8 to DN65)
Bore: Full Bore
Pressure Rating: WOG 1000, 1500, 2000
Top Works: Direct Mount
End Connections: BSP, NPT
Materials: CF8M, CF3M, CF8, CF3, WCB
Seat Material: PTFE, RTFE, CTFE, TFM1600, MG1241, STFE, PEEK, Delrin, UHMWPE, PCTFE
Features: CE, SIL 3
Double Block and Bleed
Size Range: 1/4" to 2-1/2" (DN8 to DN65)
Bore: Full Bore
Pressure Rating: WOG 1000, 1500, 2000
Top Works: Direct Mount
End Connections: BSP, NPT
Materials: CF8M, CF3M, CF8, CF3, WCB
Seat Material: PTFE, RTFE, CTFE, TFM1600, MG1241, STFE, PEEK, Delrin, UHMWPE, PCTFE
Features: CE, SIL 3
K99 - Wafer Style Ball Valves
Size Range: 1/2" to 6" (DN15 to DN150)
Bore: Full Bore
Pressure Rating: ANSI Class 150lb
Top Works: Direct Mount
End Connections: ANSI Class 150lb
Materials: CF8M, CF3M, CF8, CF3, WCB
Seat Material: PTFE, RTFE, CTFE, TFM1600, MG1241, STFE, PEEK, Delrin, UHMWPE, PCTFE
Features: CE, SIL 3, ATEX, API 607, ISO10497
Size Range: 1/2" to 6" (DN15 to DN150)
Bore: Full Bore
Pressure Rating: ANSI Class 150lb
Top Works: Direct Mount
End Connections: ANSI Class 150lb
Materials: CF8M, CF3M, CF8, CF3, WCB
Seat Material: PTFE, RTFE, CTFE, TFM1600, MG1241, STFE, PEEK, Delrin, UHMWPE, PCTFE
Features: CE, SIL 3, ATEX, API 607, ISO10497
K90D - 2 Piece Ball Valves
Size Range: 1/2" to 12" (DN15 to DN300)
Bore: Full Bore
Pressure Rating: ANSI Class 150lb, 300lb, 600lb
Top Works: Direct Mount
End Connections: ANSI Class 150lb, 300lb, 600lb Raised Face
Materials: CF8M, CF3M, CF8, CF3, WCB, CN7M, CD3MN, CE3MN, CW12MW, 904L, LCC, Titanium Alloy (Gr. C-2)
Seat Material: PTFE, RTFE, CTFE, TFM1600, MG1241, STFE, PEEK, Delrin, UHMWPE, PCTFE
Features: CE, SIL 3, ATEX, ISO 10497, API 607
Size Range: 1/2" to 12" (DN15 to DN300)
Bore: Full Bore
Pressure Rating: ANSI Class 150lb, 300lb, 600lb
Top Works: Direct Mount
End Connections: ANSI Class 150lb, 300lb, 600lb Raised Face
Materials: CF8M, CF3M, CF8, CF3, WCB, CN7M, CD3MN, CE3MN, CW12MW, 904L, LCC, Titanium Alloy (Gr. C-2)
Seat Material: PTFE, RTFE, CTFE, TFM1600, MG1241, STFE, PEEK, Delrin, UHMWPE, PCTFE
Features: CE, SIL 3, ATEX, ISO 10497, API 607
K90 - 2 Piece Ball Valves
Bore: Full Bore
Pressure Rating: ANSI Class 150lb
Top Works: ISO 5211
End Connections: ANSI Class 150lb Raised Face
Materials: CF8M, CF3M, CF8, CF3, WCB, CN7M, CD3MN, CE3MN, CW12MW, 904L, LCC, Titanium Alloy (Gr. C-2)
Seat Material: PTFE, RTFE, CTFE, TFM1600, MG1241, STFE, PEEK, Delrin, UHMWPE, PCTFE
Features: CE, SIL 3, ATEX, API 607 ed.8
Size Range: 1/2" to 4" (DN15 to DN100)
Bore: Full Bore
Pressure Rating: ANSI Class 150lb
Top Works: ISO 5211
End Connections: ANSI Class 150lb Raised Face
Materials: CF8M, CF3M, CF8, CF3, WCB, CN7M, CD3MN, CE3MN, CW12MW, 904L, LCC, Titanium Alloy (Gr. C-2)
Seat Material: PTFE, RTFE, CTFE, TFM1600, MG1241, STFE, PEEK, Delrin, UHMWPE, PCTFE
Features: CE, SIL 3, ATEX, API 607 ed.8

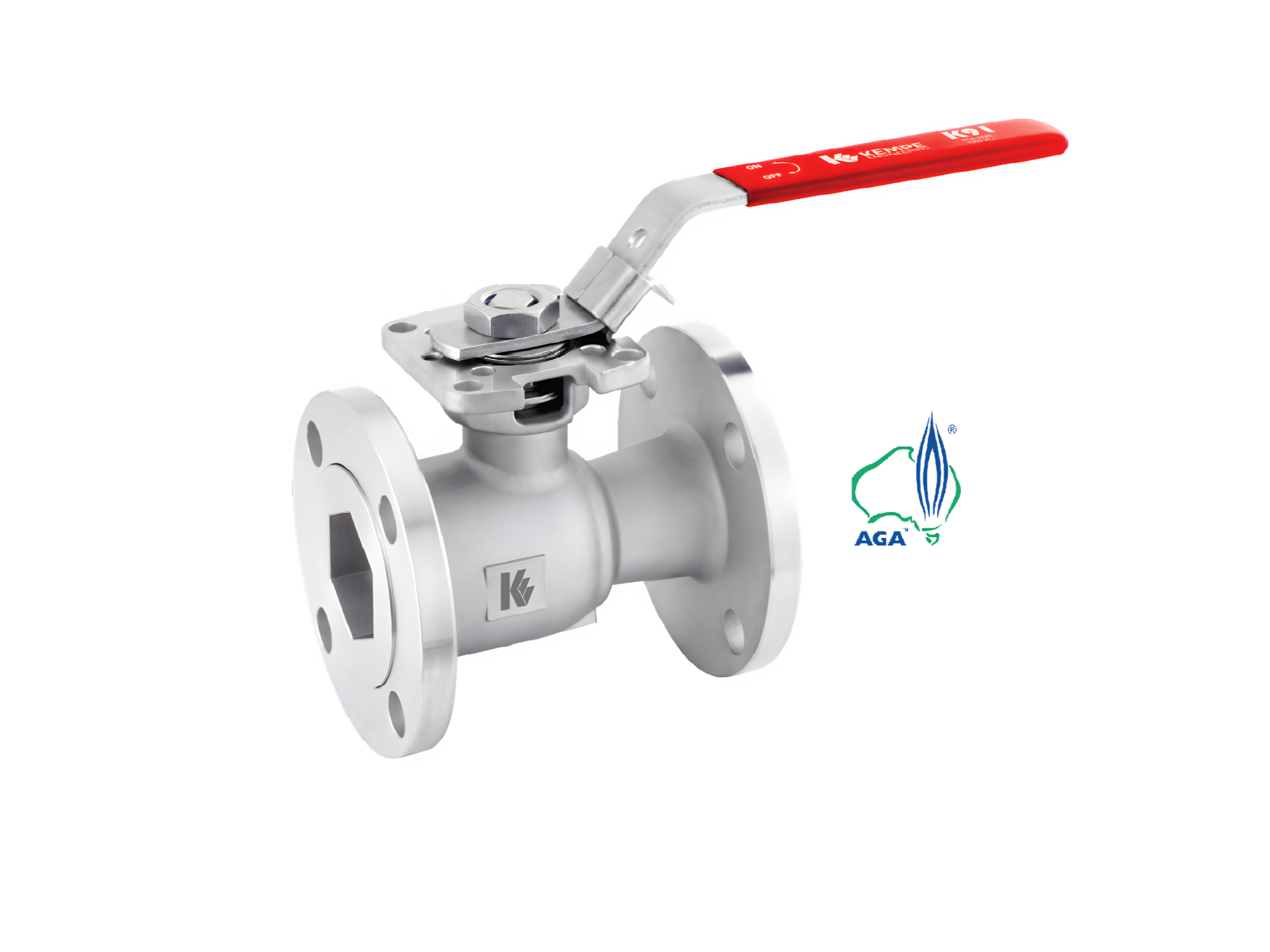

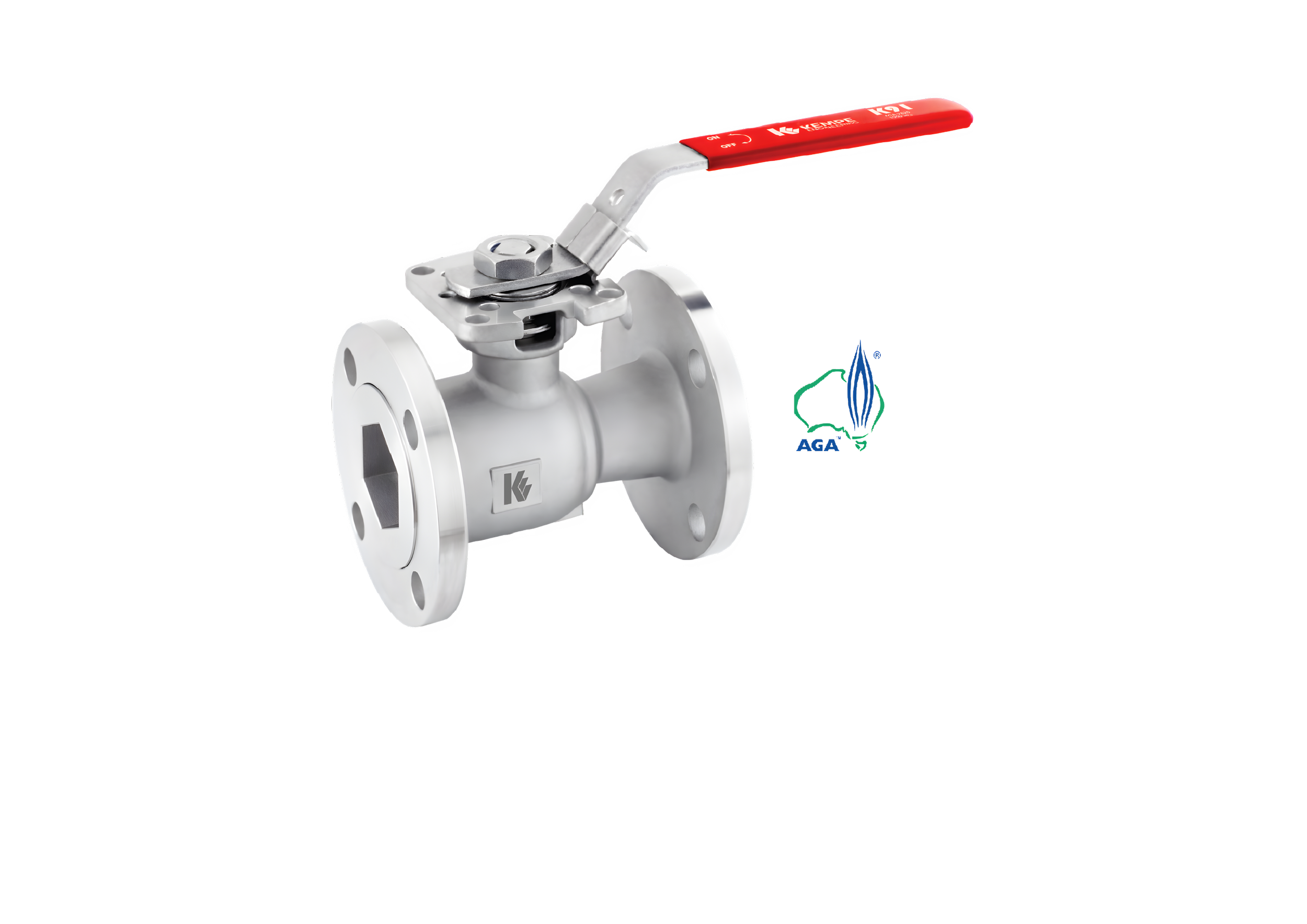

K91D - 1 Piece Ball Valves
Size Range: 1/2" to 6" (DN15 to DN150)
Bore: Reduced Bore
Pressure Rating: ANSI Class 150lb, 300lb
Top Works: Direct Mount
End Connections: ANSI Class 150lb, 300lb, Raised Face
Materials: CF8M, CF3M, CF8, CF3, WCB, CN7M, CD3MN, CE3MN, CW12MW, 904L, LCC, Titanium Alloy (Gr. C-2)
Seat Material: PTFE, RTFE, CTFE, TFM1600, MG1241, STFE, PEEK, Delrin, UHMWPE, PCTFE
Features: CE, SIL 3, ATEX, ISO 10497, API 607, AGA 7820
Size Range: 1/2" to 6" (DN15 to DN150)
Bore: Reduced Bore
Pressure Rating: ANSI Class 150lb, 300lb
Top Works: Direct Mount
End Connections: ANSI Class 150lb, 300lb, Raised Face
Materials: CF8M, CF3M, CF8, CF3, WCB, CN7M, CD3MN, CE3MN, CW12MW, 904L, LCC, Titanium Alloy (Gr. C-2)
Seat Material: PTFE, RTFE, CTFE, TFM1600, MG1241, STFE, PEEK, Delrin, UHMWPE, PCTFE
Features: CE, SIL 3, ATEX, ISO 10497, API 607, AGA 7820

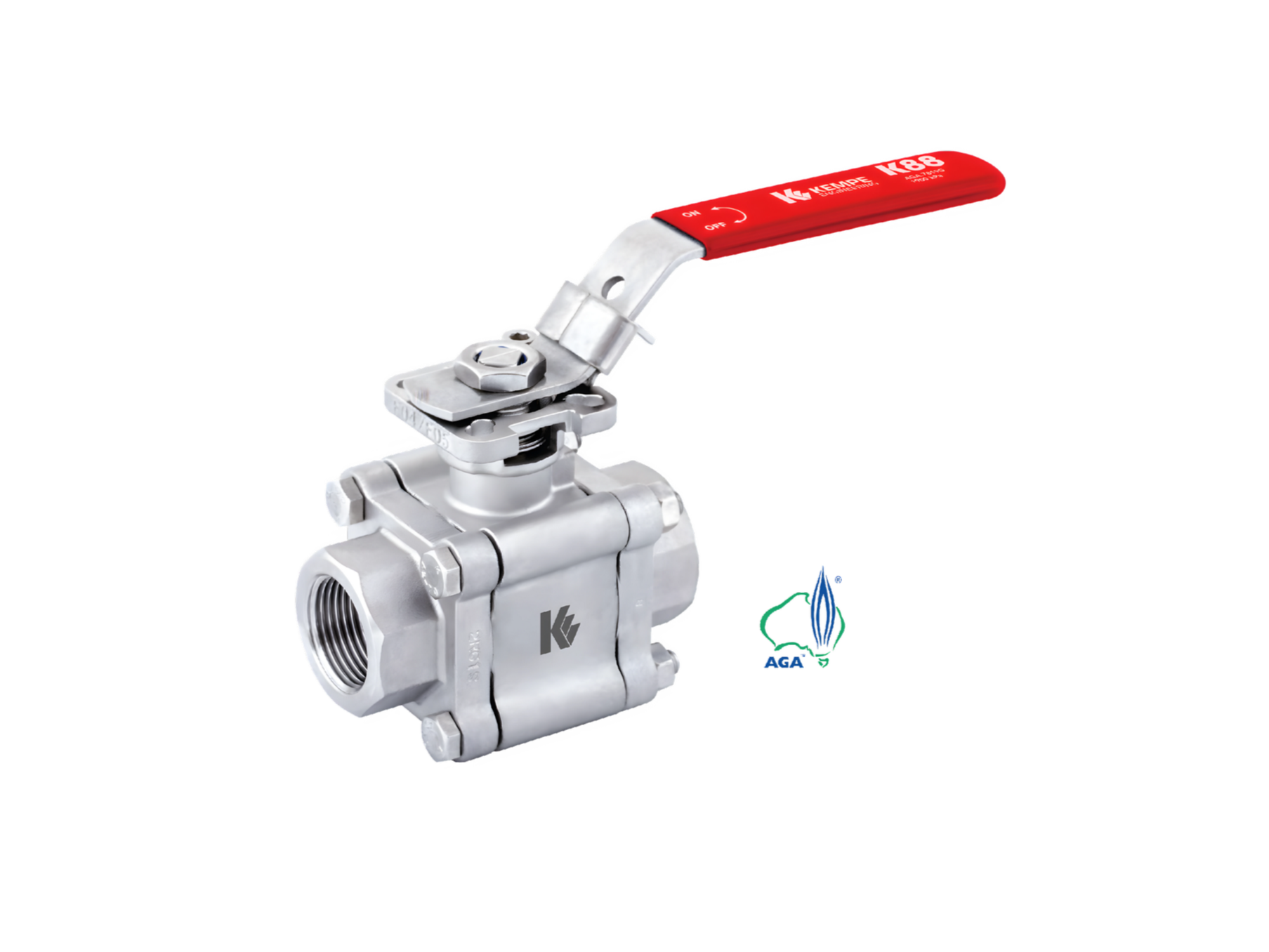

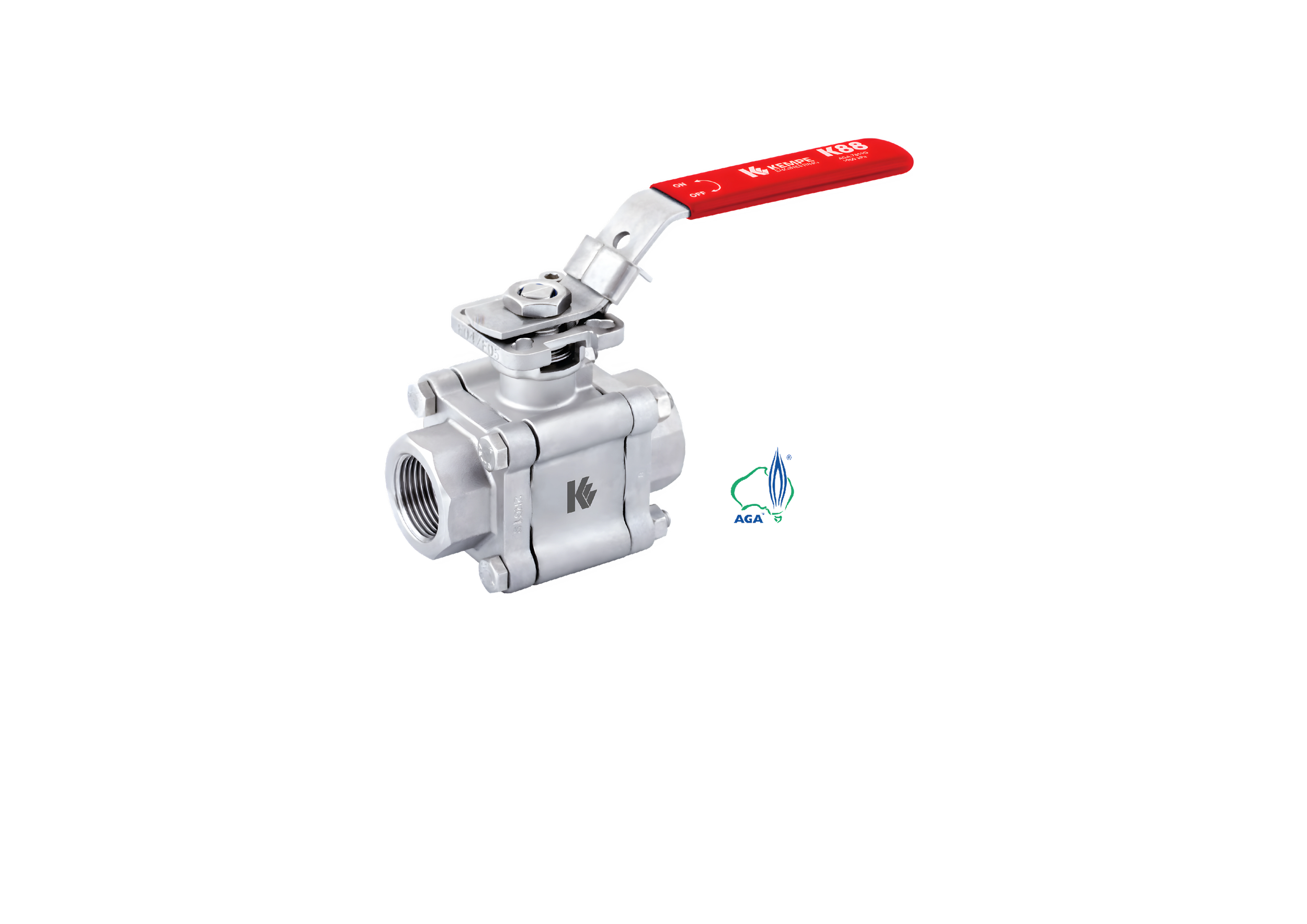

K88 - Direct Mount
3 Piece Ball Valve
Size Range: 1/4" to 2" (DN8 to DN50)
Pressure Rating: WOG 1500, 2000
Bore: Full or Reduced Bore
End Connection: NPT, BSP, Socketweld, Buttweld
Materials: CF8M, CF3M, CF8,CF3, WCB, CN7M,
CD3MN, CE3MN, CE3MN, CW12MW, 904L, LCC,
Titanium Alloy (Gr. C-2)
Seat Material: PTFE, RTFE, CTFE,
TFM1600, MG1241, STFE, PEEK, Delrin, UHMWPE, PCTFE
Features: CE, SIL 3, ATEX,ISO 10497, API 607 Ed.7, AGA 7819
3 Piece Ball Valve
Size Range: 1/4" to 2" (DN8 to DN50)
Pressure Rating: WOG 1500, 2000
Bore: Full or Reduced Bore
End Connection: NPT, BSP, Socketweld, Buttweld
Materials: CF8M, CF3M, CF8,CF3, WCB, CN7M,
CD3MN, CE3MN, CE3MN, CW12MW, 904L, LCC,
Titanium Alloy (Gr. C-2)
Seat Material: PTFE, RTFE, CTFE,
TFM1600, MG1241, STFE, PEEK, Delrin, UHMWPE, PCTFE
Features: CE, SIL 3, ATEX,ISO 10497, API 607 Ed.7, AGA 7819

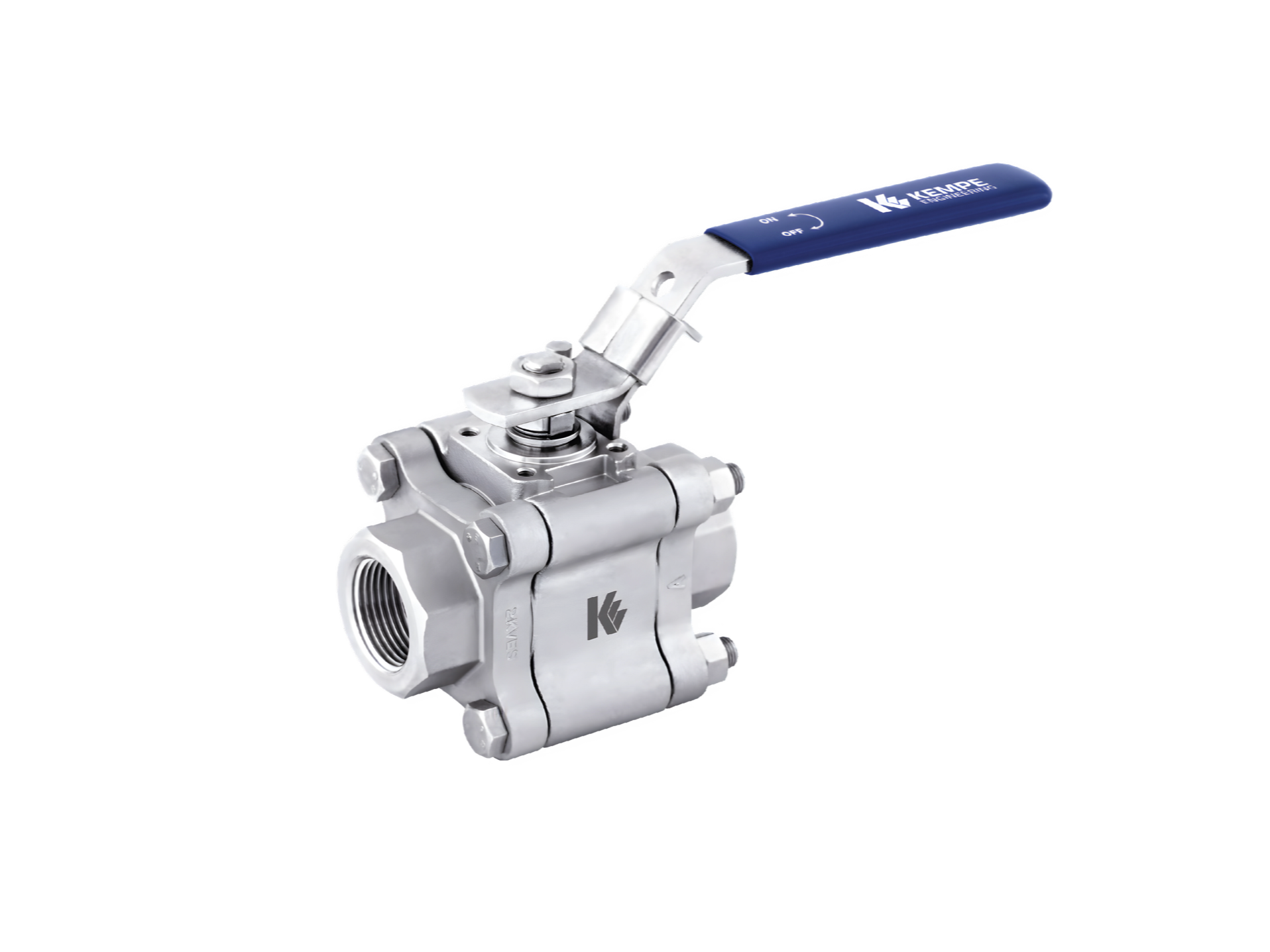

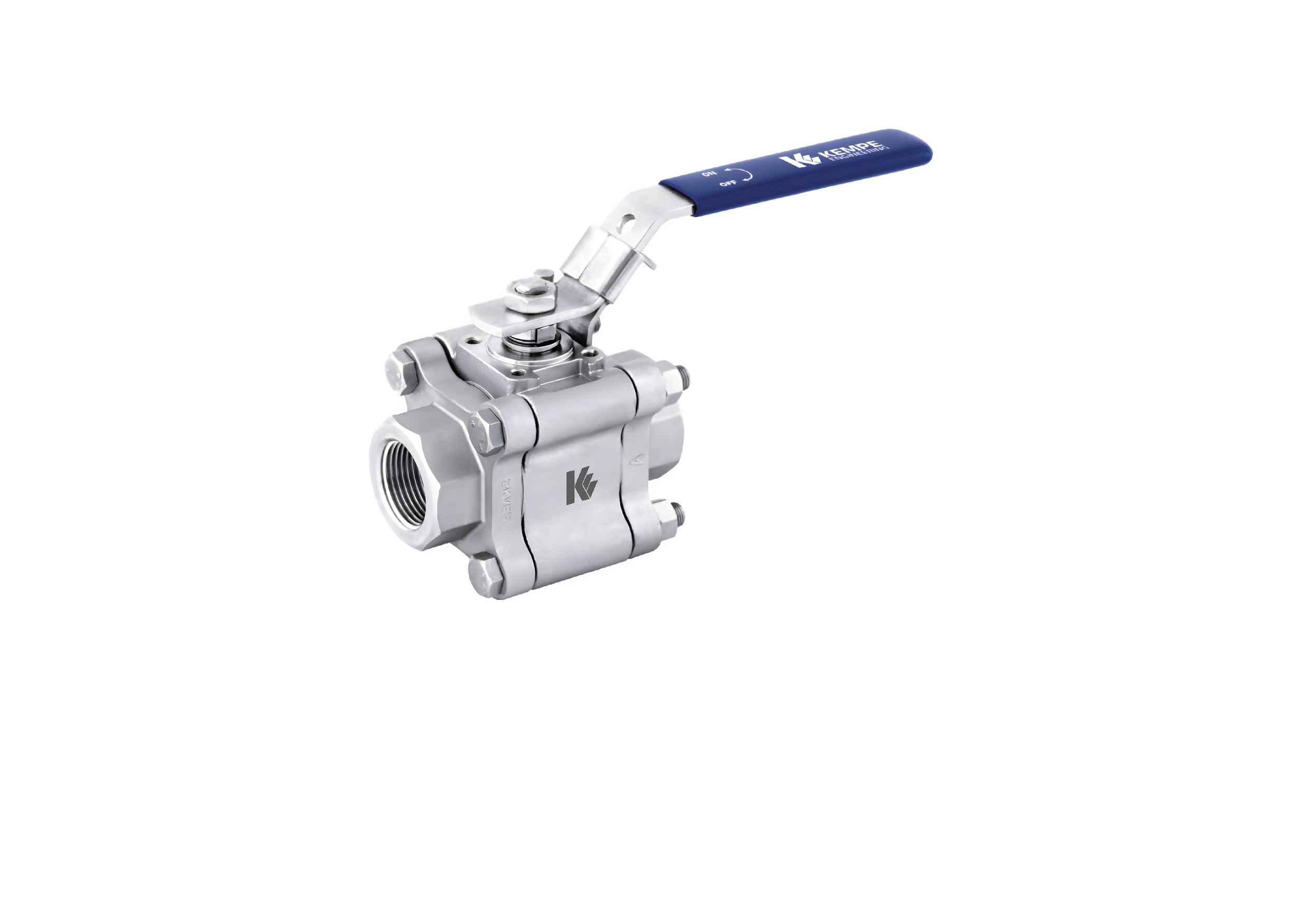

K83 - 3 Piece Ball Valves
Size Range: 1/4" to 2" (DN8 to DN50)
Pressure Rating: WOG 1500, 2000
Bore: Full or Reduced Bore
Materials: CF8M, CF3M, CF8, CF3, WCB, CN7M, CD3MN, CE3MN,
CW12MW, 904L, LCC, Titanium Alloy (Gr. C-2)
Seat Material: PTFE, RTFE, CTFE, TFM1600, MG1241, STFE,
PEEK, Delrin, UHMWPE, PCTFE
Features: CE, SIL 3, ATEX, API 607 Ed.7
Size Range: 1/4" to 2" (DN8 to DN50)
Pressure Rating: WOG 1500, 2000
Bore: Full or Reduced Bore
Materials: CF8M, CF3M, CF8, CF3, WCB, CN7M, CD3MN, CE3MN,
CW12MW, 904L, LCC, Titanium Alloy (Gr. C-2)
Seat Material: PTFE, RTFE, CTFE, TFM1600, MG1241, STFE,
PEEK, Delrin, UHMWPE, PCTFE
Features: CE, SIL 3, ATEX, API 607 Ed.7

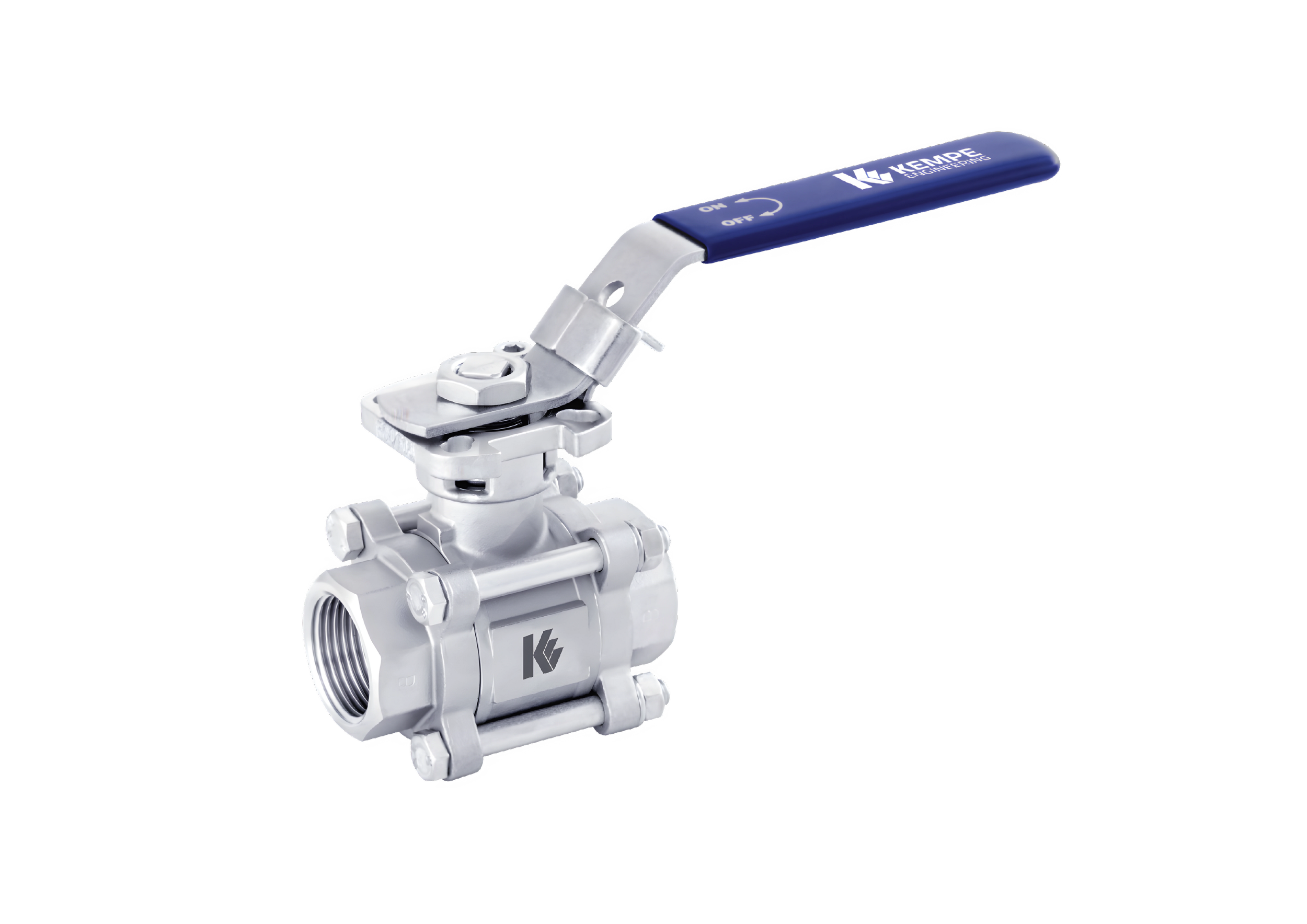

K77 - 3 Piece Ball Valves
Size Range: 1/4" to 4" (DN8 to DN100)
Pressure Rating: WOG 800, 1000
Top Works: Direct Mount
Materials: CF8M, CF3M, CF8, CF3, WCB
Seat Material: PTFE, RTFE, CTFE,
TFM1600, MG1241, STFE
Features: CE, SIL 3, ATEX
Sanitary Option, V-Port Option
Size Range: 1/4" to 4" (DN8 to DN100)
Pressure Rating: WOG 800, 1000
Top Works: Direct Mount
Materials: CF8M, CF3M, CF8, CF3, WCB
Seat Material: PTFE, RTFE, CTFE,
TFM1600, MG1241, STFE
Features: CE, SIL 3, ATEX
Sanitary Option, V-Port Option

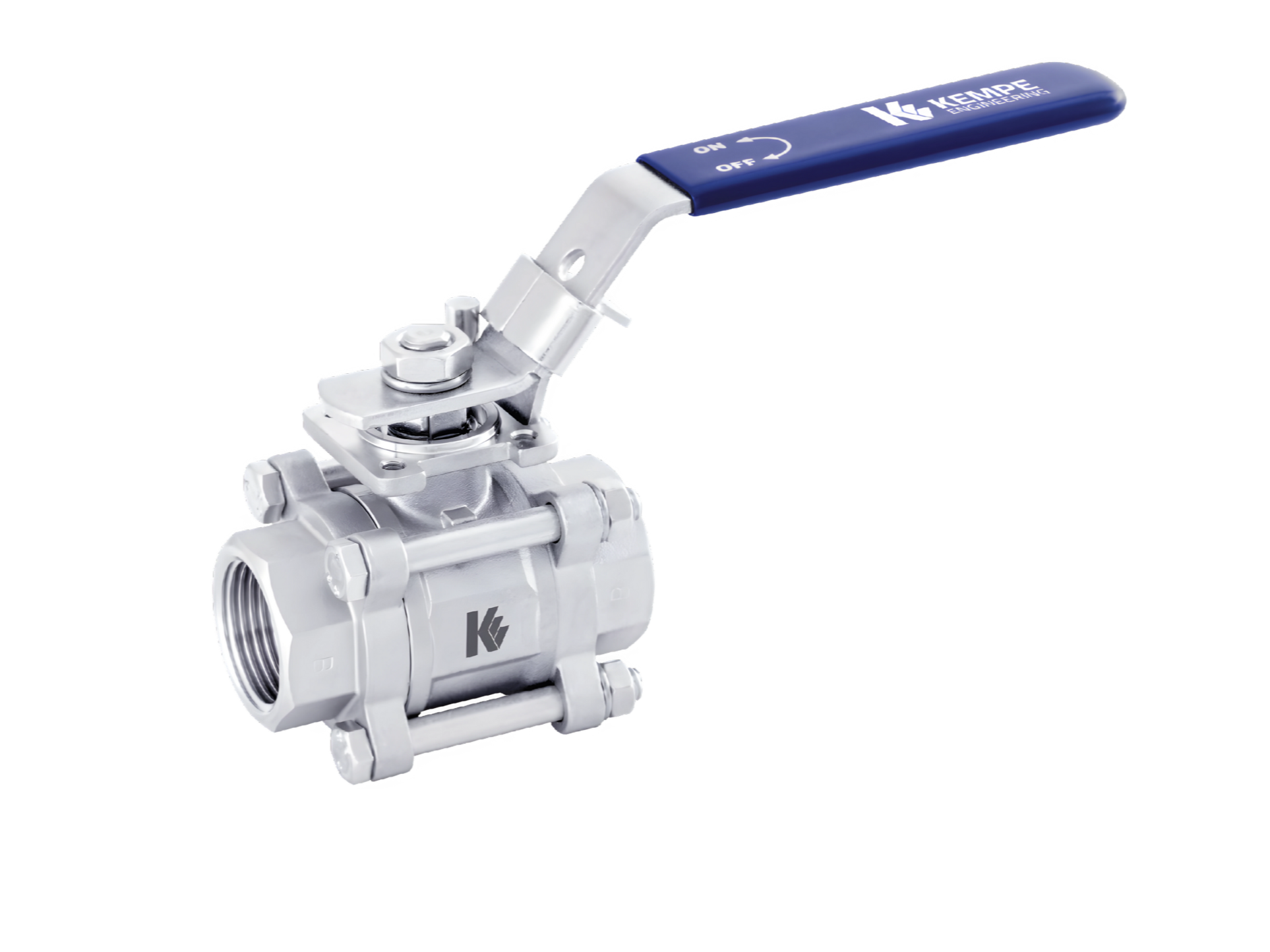

K55 A - 3 Piece Ball Valves
Size Range: 1/4" to 3" (DN8 to DN80)
Pressure Rating: WOG 1000
Top Works: Direct Mount
Materials: CF8M, CF3M, CF8, CF3, WCB
Seat Material: PTFE, RTFE, CTFE,
TFM1600, MG1241, STFE
Features: CE, SIL 3, ATEX
Size Range: 1/4" to 4" (DN8 to DN100)
Pressure Rating: WOG 800, 1000
Top Works: ISO 5211 Mount
Materials: CF8M, CF3M, CF8, CF3, WCB
Seat Material: PTFE, RTFE, CTFE,
TFM1600, MG1241, STFE
Features: CE, SIL 3, ATEX

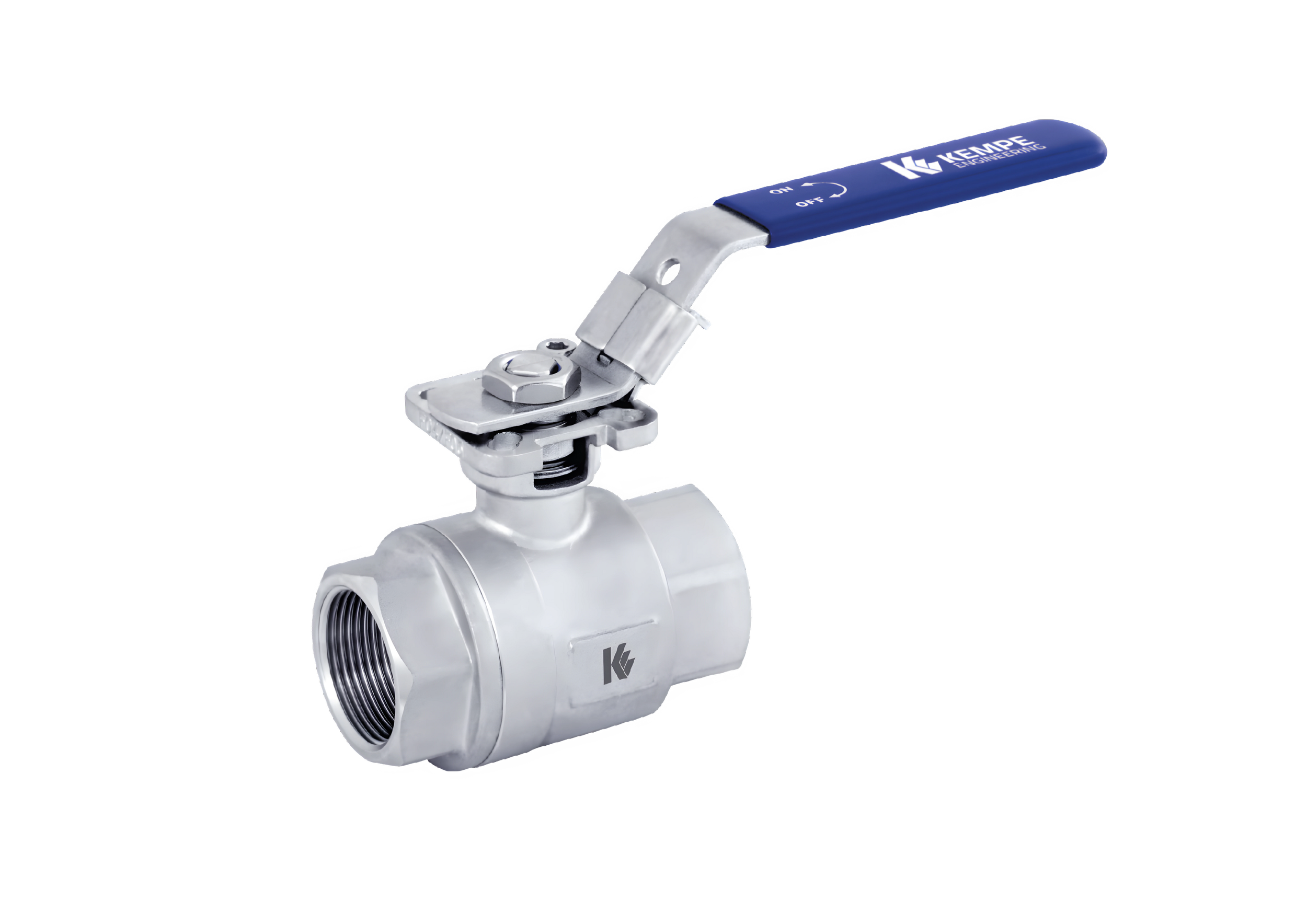

K22 - 2 Piece Ball Valves
Size Range: 1/4" to 4" (DN8 to DN100)
Pressure Rating: WOG 800, 1000
Top Works: ISO 5211 Mount
Materials: CF8M, CF3M, CF8, CF3, WCB
Seat Material: PTFE, RTFE, CTFE,
TFM1600, MG1241, STFE
Features: CE, SIL 3, ATEX
Size Range: 1/4" to 3" (DN8 to DN80)
Pressure Rating: WOG 1000
Top Works: Direct Mount
Materials: CF8M, CF3M, CF8, CF3, WCB
Seat Material: PTFE, RTFE, CTFE,
TFM1600, MG1241, STFE
Features: CE, SIL 3, ATEX

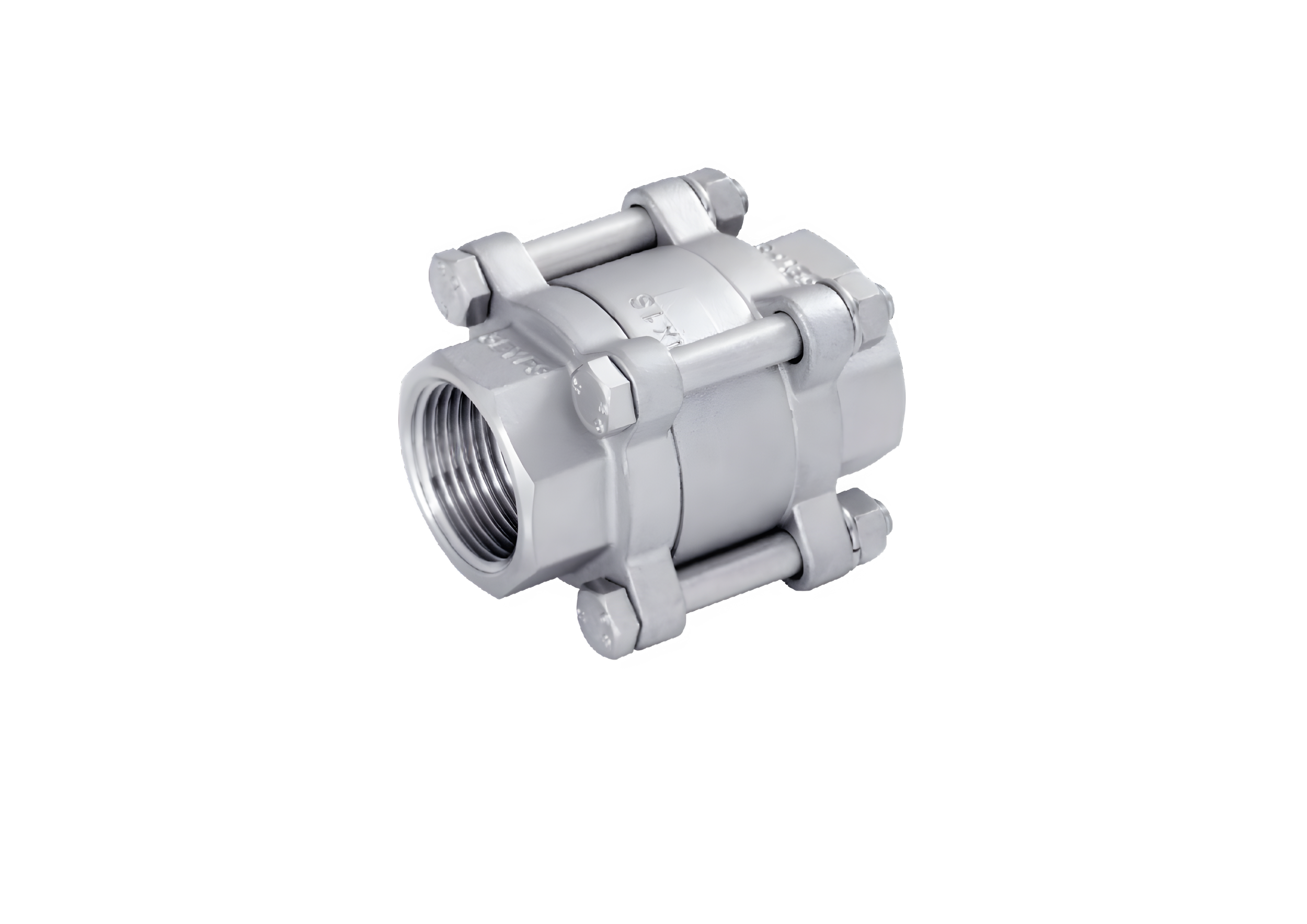

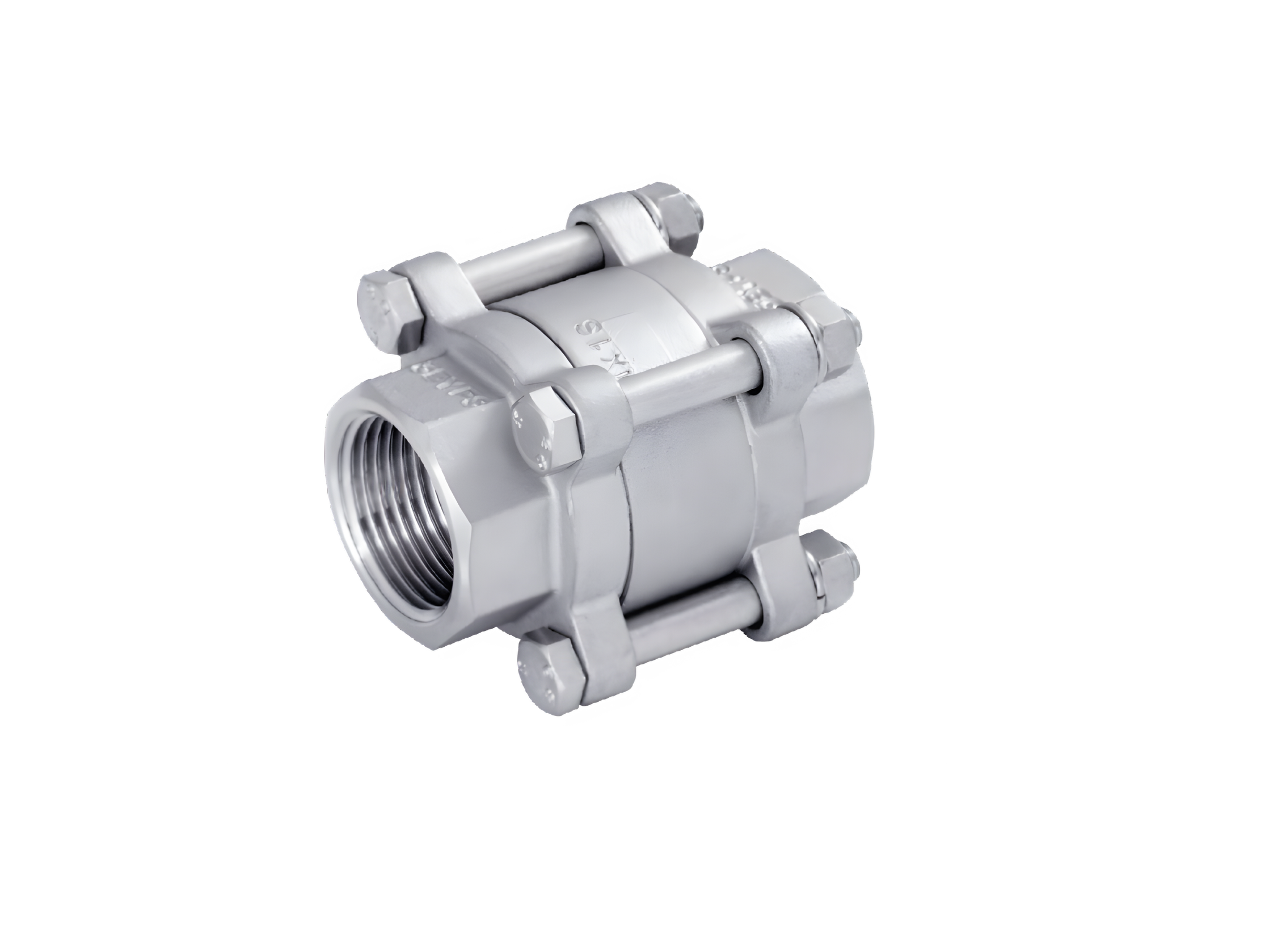

KSLC3 - In-Line Check Valves
Size Range: 3/8" to 4" (DN10 to DN100)
Bore: Full Bore
Pressure Rating: WOG 800, 1000
End Connections: NPT, BSP
Materials: CF8M
Seat Material: PTFE
Features: SIL 3
Size Range: 3/8" to 4" (DN10 to DN100)
Bore: Full Bore
Pressure Rating: WOG 800, 1000
End Connections: NPT, BSP
Materials: CF8M
Seat Material: PTFE
Features: SIL 3

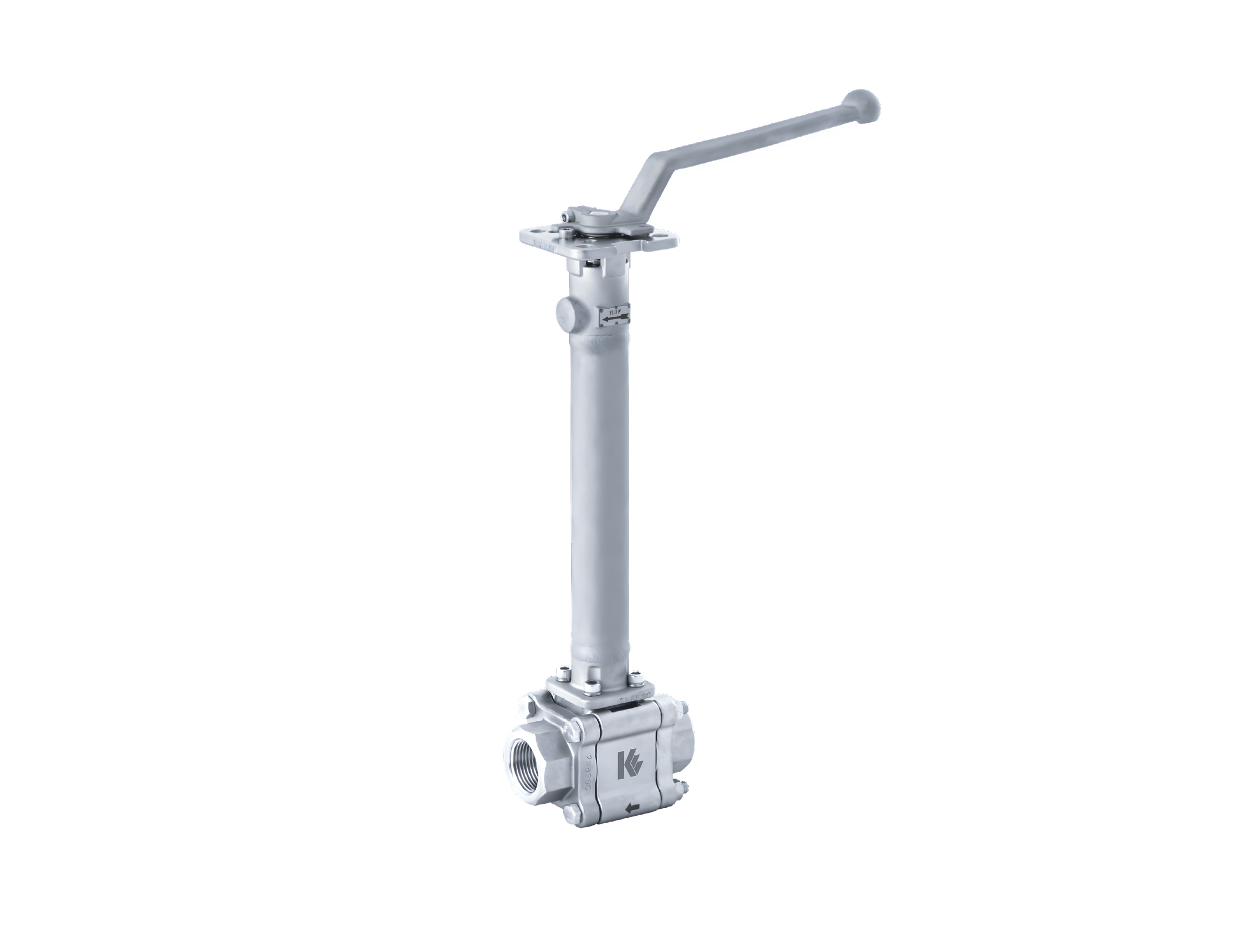

Featured Product K83C
Size Range: 1/4" to 2" (DN8 to DN50)
Bore: Full Bore & Reduced Bore
Pressure Rating: WOG 1000
Top Works: Direct Mount
End Connections: NPT, BSP, Socketweld, Buttweld, Flanged
Materials: CF8M, CF3M
Seat Material: PCTFE

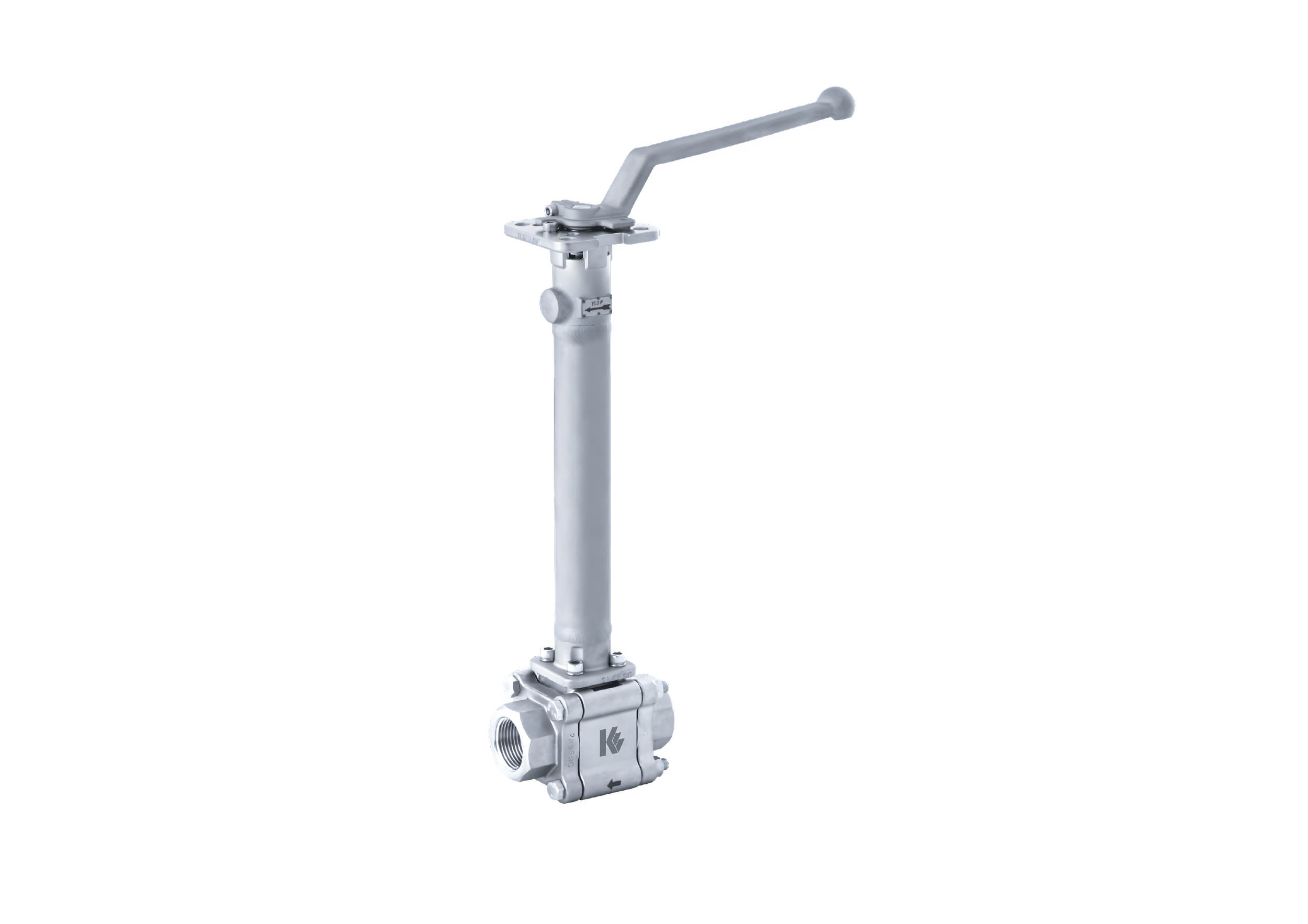

Cryogenic Ball Valve
Size Range: 1/4" to 2" (DN8 to DN50)
Bore: Full Bore & Reduced Bore
Pressure Rating: WOG 1000
Top Works: Direct Mount
End Connections: NPT, BSP, Socketweld, Buttweld, Flanged
Materials: CF8M, CF3M
Seat Material: PCTFE
