K10 - 1 Piece Ball Valves
Type: 1 Piece Ball Valve
Size: 1/4" (8nb) - 2" (50nb)
Bore: Reduced
Rating: 1000 WOG
Body: Stainless or Carbon Steel
Ball/Stem: 316SS
Seats: PTFE
Ends: BSP
Testing: API 598
KW20 - 2 Piece Ball Valves
Type: 2 Piece Ball Valve
Size: 1/4" (8nb) - 2" (50nb)
Bore: Full
Rating: 1000 WOG
Body: Stainless or Carbon Steel
Ball/Stem: 316SS
Seats: PTFE
Ends: BSP
Testing: API 598
Mini Series - Ball valves
Type: Mini Ball
Size: 1/8" (6nb) - 1" (25nb)
Bore: Reduced
Rating: 1000 WOG
Body: Stainless or Carbon Steel
Ball/Stem: 316SS
Seats: PTFE
Ends: BSP
Testing: API 598
KW90 - 2 Piece Flanged Ball Valves
Type: 2 Piece Flanged Ball Valve
Size: 1/2" (15nb) - 4" (100nb)
Bore: Full Bore
Rating: 1960kPa or 5000kPa
Body: Stainless or Carbon Steel
Ball/Stem: 316SS
Seats: PTFE
Ends: ANSI 150# or 300#
*WaterMark to AS 2129, PN 16
KSGA - Gate Valves
Type: Gate Valve
Size: 1/4" (8nb) - 2" (50nb)
Bore: Full
Rating: 200 WOG
Body: Stainless or `Carbon Steel
Ball/Stem: CF8M
Seats: PTFE
Ends: BSP
KSGL - Globe Valves
Type: Globe Valve
Size: 1/4" (8nb) - 2" (50nb)
Bore: Full
Rating: 200 WOG
Body: Stainless or Carbon Steel
Ball/Stem: CF8M
Seats: PTFE
Ends: BSP
KW50 - 3 Piece Ball Valves
Type: 3 Piece Ball Valve
Size: 1/4" (8nb) - 4" (100nb)
Bore: Full
Rating: 1000 WOG
Body: Stainless or Carbon Steel
Ball/Stem: 316SS
Seats: PTFE
Ends: BSP or NPT
Testing: API 598
KSW - Swing Check Valves
Type: Swing Check Valve
Size: 1/4" (8nb) - 2" (50nb)
Bore: Full
Rating: 200 WOG
Body: Stainless or Carbon Steel
Ball/Stem: CF8M
Seats: PTFE
Ends: BSP
Bar Stock - 1 Piece Bar Stock
Type: 1 Piece Bar Stock
Size: 1/4" (8nb) - 2" (50nb)
Bore: Reduced
Rating: 2000 PSI
Body: Carbon Steel
Ball/Stem: 304SS
Seats: PTFE
Ends: BSP
Testing: API 598
KYS800 - Y - STRAINERs
Type: Y-STRAINER
Size: 1/4" (8nb) - 2" (50nb)
Bore: Element (1mm aperature)
Rating: 800 PSI
Body: Stainless or Carbon Steel
Ball/Stem: 316SS Element
Seats: PTFE
Ends: BSP

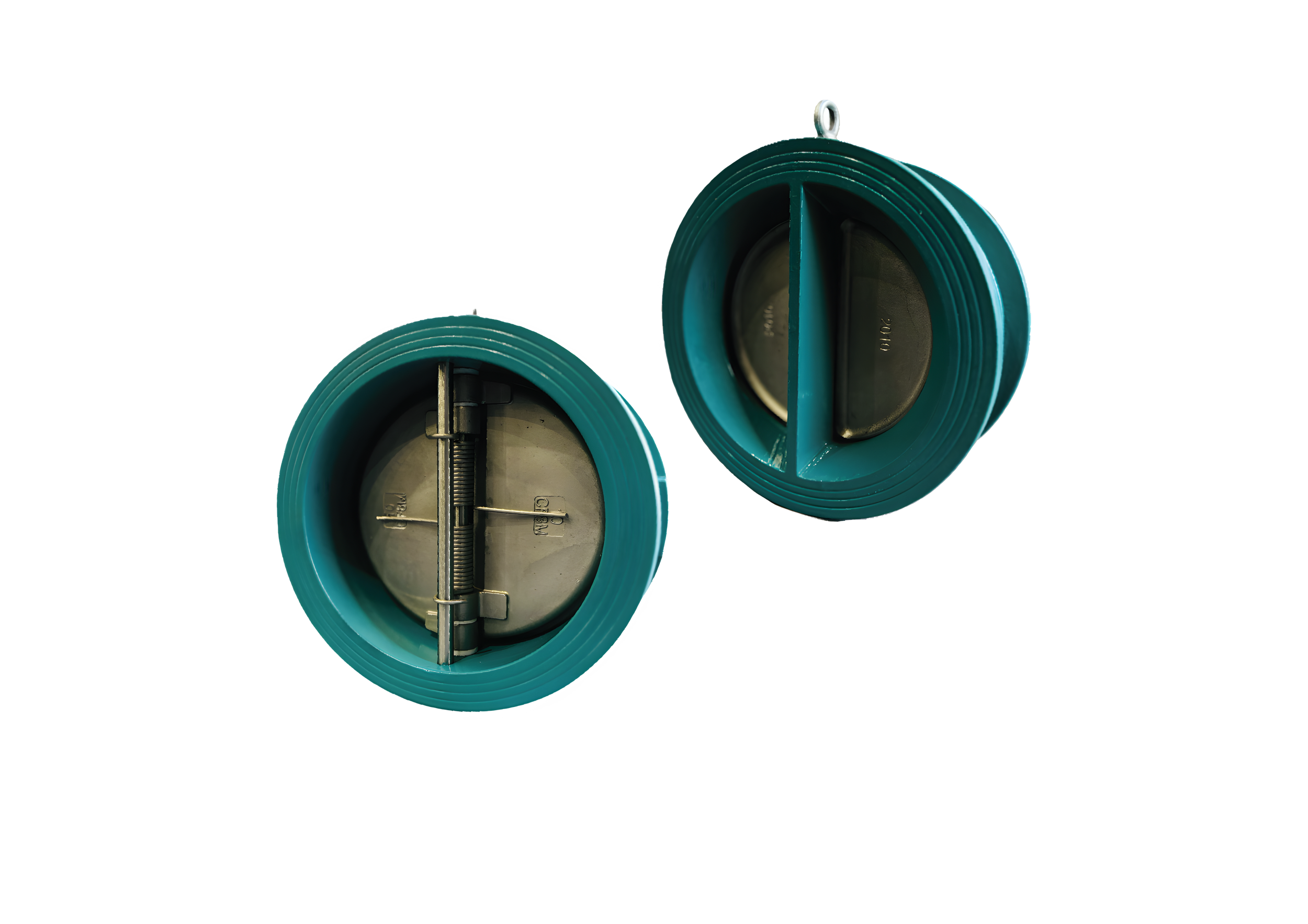

C12 & C22 CHECK VALVES
Type: Dual Plate Wafer Check Valve
Size: 2" (50nb) - 24" (600nb)
Bore: Full Bore
Rating: PN16, ANSI 150, 300, 600lb
Body & Disc: Ductile Iron, Stainless Steel, Carbon Steel, Hastelloy (C276), Duplex, Super Duplex, Titanium, Titanium Alloy, Nickel Alloys, Monel, Alu-Bronze, Stainless Alloys and Austenitic Stainless Steel.
Spring: Inconel X750 as standard, other materials on request.
Seats: NBR, EPDM, FPM, Metal, Stellite other materials on request.
Ends: ANSI 150, 300, 600lb, AS2129
Design: EN558 Series 16, API594, API598
